  2. DRA01 Nylon self-drill fixing for drywall 16x36mm with screw 3,9x32mm - plastic bag - 6 pcs.

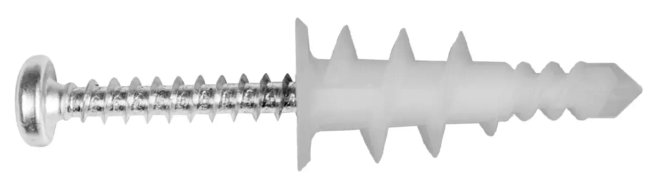

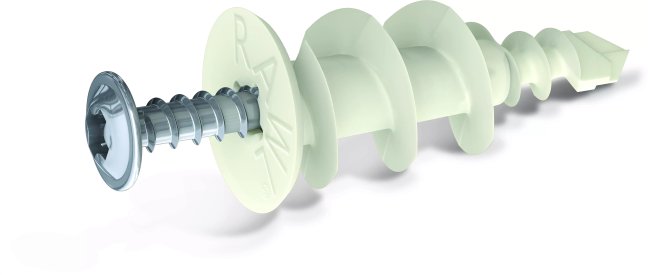

DRA01 Nylon self-drill fixing for drywall 16x36mm with screw 3,9x32mm - plastic bag - 6 pcs.

Plasterboard

R-S3-DRA01/6

5906675240503

RawlplugRawl

Perfect for installation light elements to plaster substrates

Define product parameters:

Diameter
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack0.15 kg

  • Bulk pack

    30.00 pack1.14 kg

  • Pallet

    1680.00 pack63.73 kg

Related products

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Torx T25, T30, T40 bits

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Long Torsion bits

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Torx T25, T30, T40 bits

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Long Torsion bits

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Perfect for installation light elements to plaster substrates

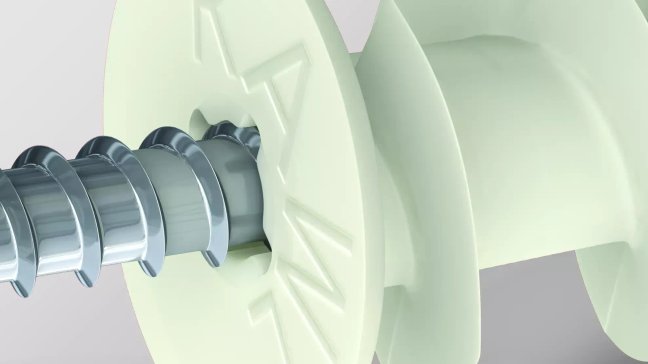

  • Flange prevents accidental push through in plasterboard.
  • Can be used in single and double thickness plasterboard.
  • Short length ideally suited for dry lined walls.
  • Very durable nylon material with fibre glass and special drilling point guarantees fast installation.
  • Installation with a standard screwdriver means that no special tools are necessary.
  • Recommended screw diameter: 3.5 - 4.2 mm.
  • Must only be used with screws provided.

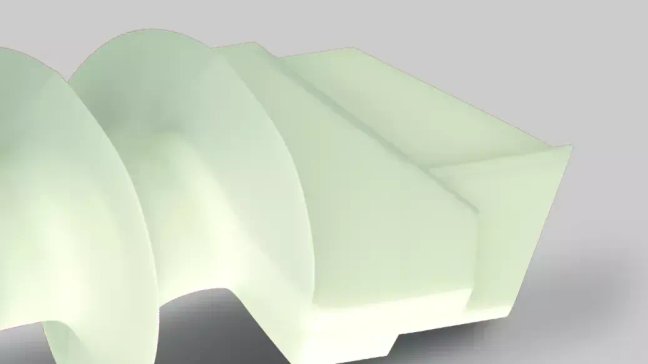

  • Integrated drill bit which eliminates the need for pre-drilling.

Substrates

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Decor

Lighting

Mirrors

Bathroom accessories

Full list of variations

Diameter
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

R-DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4.2x32 mm - cardboard box - 100 pcs.

Self-drilling light-duty metal fixing for use in plasterboard sheets

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

Driven metal fixing for easy installation in plasterboard

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

R-DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4.2x32 mm - cardboard box - 100 pcs.

Self-drilling light-duty metal fixing for use in plasterboard sheets

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

Driven metal fixing for easy installation in plasterboard

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

Installation guide

Installation manual

Installation step by step

1

Using a PZ2 screwdriver, push fixing point firmly into the board until thread engages.

2

Place fixture in position, insert screw and tighten until secure.

3

Maintaining a firm pressure, screw in fixing until flush with the base material.

4

Maintaining a firm pressure, screw in fixing until flush with the base material.

5

Screw properly fastened.
