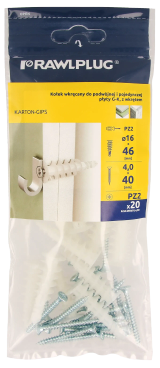

DRA-01-LONG Nylon self-drill plasterboard 16x46mm with screw 4,0x40mm - plastic bag - 20 pcs.

Plasterboard
New

R-S3-DRA01L+/20

5906675523613

RawlplugRawl

Perfect for installation light elements to plaster substrates

Define product parameters:

Packaging and quantity

Related products

Features

Perfect for installation light elements to plaster substrates

  • Innovative elongated design provides quick and secure installation in double and single plasterboard, gypsum blocks, aerated concrete (density up to 2,5 Mpa)
  • Durable nylon and fibreglass blend for high load capacity
  • Flange which comes perfectly flush with the substrate, preventing the plug from going too deep into plasterboard
  • Integrated drill bit which eliminates the need for pre-drilling
  • All you need to drive the plug and the screw in place is a screwdriver and one bit: PZ2
  • Recommended use of screws with a minimum lenght of 40mm and a diameter of 3,5-4,5mm
  • Must only be used with screws provided.

Substrates

Aerated concrete block

Aerated concrete block

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Applications

Decor

Lighting

Mirrors

Cabinets, brackets and wall brackets

Substitutes

Services

Customized packaging

Customized packaging

Designing POS Displays

Designing POS Displays

Technical Support 2

Technical Support 2

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Using a screwdriver, screw in the connector until the correct depth is obtained. When using a multi-speed screwdriver, select gear 1 (lower speed gear). Taking care not to drag the fastening - you can screw with sensitivity and use the clutch settings on the screwdriver.

2

Maintaining a firm pressure, screw in fixing until flush with the base material.

3

Tighten until it stops.
