Plasterboard
New
R-S3-DRA01L+/4
5906675523620

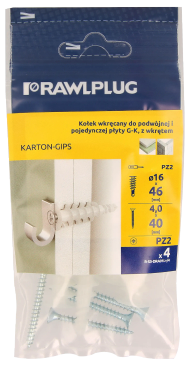

Perfect for installation light elements to plaster substrates
Define product parameters:
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features
Perfect for installation light elements to plaster substrates
- Innovative elongated design provides quick and secure installation in double and single plasterboard, gypsum blocks, aerated concrete (density up to 2,5 Mpa).
- Durable nylon and fibreglass blend for high load capacity.
- Flange which comes perfectly flush with the substrate, preventing the plug from going too deep into plasterboard.
- Integrated drill bit which eliminates the need for pre-drilling.
- All you need to drive the plug and the screw in place is a screwdriver and one bit: PZ2.
- Recommended use of screws with a minimum lenght of 40mm and a diameter of 3.5-4.5mm.
- Must only be used with screws provided.
Approved surfaces
Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Installation manual
Installation step by step
1
Using a screwdriver, screw in the connector until the correct depth is obtained. When using a multi-speed screwdriver, select gear 1 (lower speed gear). Taking care not to drag the fastening - you can screw with sensitivity and use the clutch settings on the screwdriver.
2
Maintaining a firm pressure, screw in fixing until flush with the base material.
3
Tighten until it stops.
