  2. DRA-01-LONG Nylon self-drill plasterboard 16x46mm with screw 4,0x40mm - plastic bag - 8 pcs.

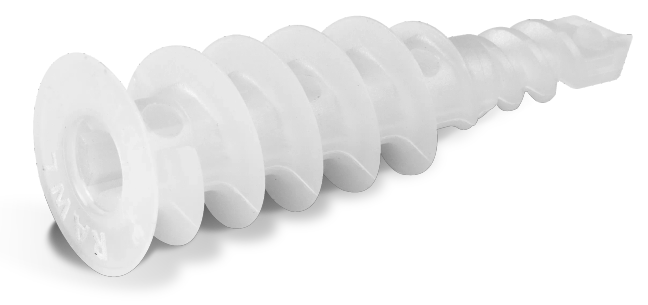

DRA-01-LONG Nylon self-drill plasterboard 16x46mm with screw 4,0x40mm - plastic bag - 8 pcs.

Plasterboard
New

R-S3-DRA01L+/8

5906675523606

RawlplugRawl

Perfect for installation light elements to plaster substrates

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack

  • Bulk pack

    5.00 pack

  • Pallet

    1400.00 pack

Related products

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Long Torsion bits

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Bit adapter with 2 magnets 60 mm - plastic box - 1 pcs.

Bit holder with 2 magnets precisely holds the screws during application in a variety of substrates

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Long Torsion bits

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Bit adapter with 2 magnets 60 mm - plastic box - 1 pcs.

Bit holder with 2 magnets precisely holds the screws during application in a variety of substrates

Features

Perfect for installation light elements to plaster substrates

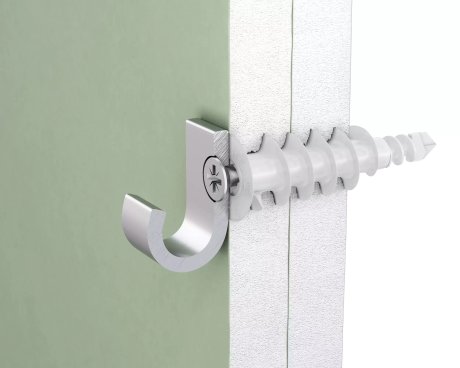

  • Innovative elongated design provides quick and secure installation in double and single plasterboard, gypsum blocks, aerated concrete (density up to 2,5 Mpa).
  • Durable nylon and fibreglass blend for high load capacity.
  • Flange which comes perfectly flush with the substrate, preventing the plug from going too deep into plasterboard.
  • Integrated drill bit which eliminates the need for pre-drilling.
  • All you need to drive the plug and the screw in place is a screwdriver and one bit: PZ2.
  • Recommended use of screws with a minimum lenght of 40mm and a diameter of 3.5-4.5mm.
  • Must only be used with screws provided.

Substrates

Aerated concrete block

Aerated concrete block

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Applications

Decor

Lighting

Mirrors

Cabinets, brackets and wall brackets

Full list of variations

Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

R-DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4.2x32 mm - cardboard box - 100 pcs.

Self-drilling light-duty metal fixing for use in plasterboard sheets

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

Driven metal fixing for easy installation in plasterboard

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

R-DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4.2x32 mm - cardboard box - 100 pcs.

Self-drilling light-duty metal fixing for use in plasterboard sheets

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

Driven metal fixing for easy installation in plasterboard

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

Installation guide

Installation manual

Installation step by step

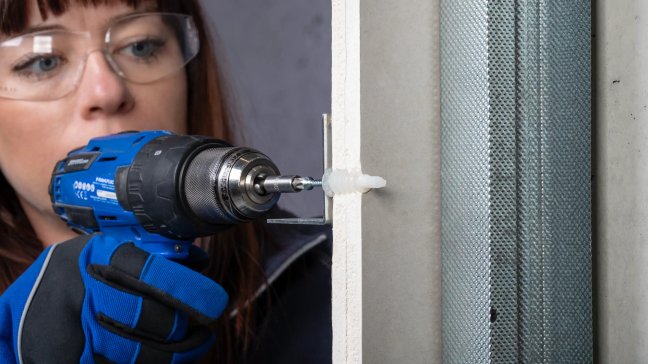

1

Using a screwdriver, screw in the connector until the correct depth is obtained. When using a multi-speed screwdriver, select gear 1 (lower speed gear). Taking care not to drag the fastening - you can screw with sensitivity and use the clutch settings on the screwdriver.

2

Maintaining a firm pressure, screw in fixing until flush with the base material.

3

Tighten until it stops.
