  2. Nylon frame fixing countersunk version - zinc plated R-FF1-N-L8x100mm - plastic bag - 12 pcs.

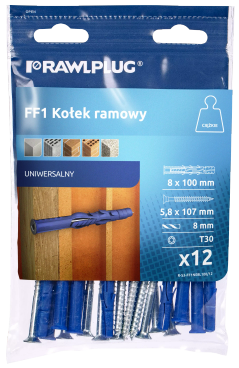

Nylon frame fixing countersunk version - zinc plated R-FF1-N-L8x100mm - plastic bag - 12 pcs.

Universal

R-S3-FF1N08L100/12

5906675310336

Universal countersunk frame fixing with screw for many applications

Download model Perform the calculations

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack

  • Bulk pack

    5.00 pack

  • Pallet

    840.00 pack

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Long Torsion bits

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

R-PGL Protective gloves for power tools 9" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Long Torsion bits

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

R-PGL Protective gloves for power tools 9" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Universal countersunk frame fixing with screw for many applications

  • The countersunk plug for flush fixing of soft material (eg. timber).
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).
  • Internal plug geometry designed to fit the screw head.
  • Plug design ensures multi-axis expansion.

Product video

Rawlplug FF1 Universal Nylon Frame Fixing

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Bathroom accessories

Doors and windows

Electrical Installations

Furniture

Handrails

Satellite dishes

Ventilated facades

Full list of variations

Corrosion protection
Diameter
Length
Diameter
Length
Corrosion protection
Type of package
Pieces. per pack.
Index
EAN
Catalog price for pack. net
10 mm120 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L1205906675266923€0.00

Contact with us and check out our terms of cooperation

8 mm80 mmZP - Galvanized

Cardboard box

50R-FF1-N-08L0805906675163703€0.00

Contact with us and check out our terms of cooperation

10 mm100 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L1005906675266916€0.00

Contact with us and check out our terms of cooperation

10 mm160 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L1605906675266947€0.00

Contact with us and check out our terms of cooperation

10 mm140 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L1405906675266930€0.00

Contact with us and check out our terms of cooperation

8 mm100 mmZP - Galvanized

Cardboard box

50R-FF1-N-08L1005906675163741€0.00

Contact with us and check out our terms of cooperation

10 mm200 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L2005906675033983€0.00

Contact with us and check out our terms of cooperation

10 mm80 mmZP - Galvanized

Cardboard box

50R-FF1-N-10L0805906675266909€0.00

Contact with us and check out our terms of cooperation

8 mm120 mmZP - Galvanized

Cardboard box

50R-FF1-N-08L1205906675292830€0.00

Contact with us and check out our terms of cooperation

10 mm240 mmZP - Galvanized

Cardboard box

25R-FF1-N-10L2405906675034102€0.00

Contact with us and check out our terms of cooperation

Substitutes

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50 mm - cardboard box - 50 pcs.

Universal frame fixing with collar and hex head screw for many applications

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50 mm - cardboard box - 50 pcs.

Universal frame fixing with collar and hex head screw for many applications

Services

Design Consulting

Design Consulting

Technical Support

Technical Support

Design tools

Design tools

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the FF1 screw.

6

Properly fixed frame pin with screw.

7

Tighten the FF1

Installation data
