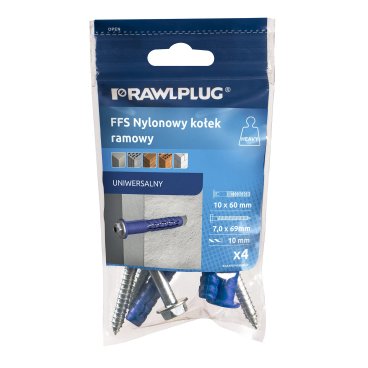

  2. Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x60 mm - plastic bag - 4 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x60 mm - plastic bag - 4 pcs.

Universal
New

R-S3-FFS-N10K060/4

5906675473871

Frame fixing with shortest expansion zone

Download model Perform the calculations

Define product parameters:

Diameter
Head type
Length
Material
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    1.00 pack

  • Bulk pack

    5.00 pack

  • Pallet

    2200.00 pack

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Features

Frame fixing with shortest expansion zone

  • Collared plug for fixing of hard materials (eg. steel).
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete.
  • Plug design ensures multi-axis expansion.
  • Shortest anchoring depth - only 40/50 mm.
  • High quality workmanship.
  • Internal plug geometry designed to fit the screw head.

Product video

R-FFS: Rawlplug Academy: jak kotwić konstrukcje w trudnych warunkach?

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Stairs

Ventilated facades

Full list of variations

Diameter
Head type
Length
Material
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

Correctly fixed frame pin with the shortest expansion zone.

Installation data
