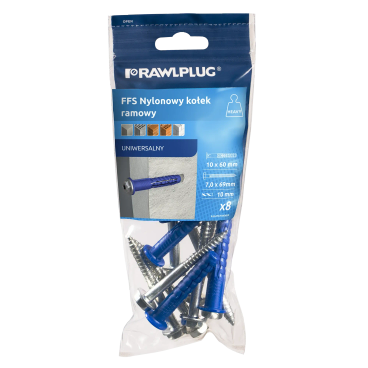

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x60 mm - plastic bag - 8 pcs.

Universal
New

R-S3-FFS-N10K060/8

5906675473888

Universal frame fixing with collar and hex head screw for many applications

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    1.00 pack

  • Bulk pack

    5.00 pack

  • Pallet

    1760.00 pack

Related products

Features

Universal frame fixing with collar and hex head screw for many applications

  • Collared plug for fixing of hard materials (eg. steel).
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete.
  • Plug design ensures multi-axis expansion.
  • Shortest anchoring depth - only 40/50 mm.
  • Internal plug geometry designed to fit the screw head.
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).

Product video

R-FFS: Rawlplug Academy: jak kotwić konstrukcje w trudnych warunkach?

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Full list of variations

Diameter
Length
Type of package
Pieces. per pack.
Index
EAN
Catalog price for pack. net

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

Correctly fixed frame pin with the shortest expansion zone.

Approvals and publications

Technical library

(2)

Technical assessments(1)

ETA-18/0818_19-03-2025

Certificates(1)

1488-CPR-0615/Z

Catalogues and product cards

(1)

Product cards(1)
