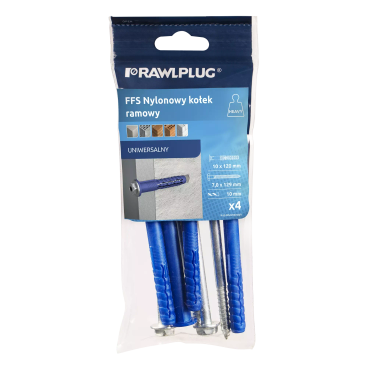

  2. Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x120 mm - plastic bag - 4 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x120 mm - plastic bag - 4 pcs.

Universal
New

R-S3-FFS-N10K120/4

5906675473918

Frame fixing with shortest expansion zone

Download model Perform the calculations

Define product parameters:

Diameter
Head type
Length
Material
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    1.00 pack

  • Bulk pack

    5.00 pack

  • Pallet

    1760.00 pack

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Frame fixing with shortest expansion zone

  • Collared plug for fixing of hard materials (eg. steel).
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete.
  • Plug design ensures multi-axis expansion.
  • Shortest anchoring depth - only 40/50 mm.
  • High quality workmanship.
  • Internal plug geometry designed to fit the screw head.

Product video

R-FFS: Rawlplug Academy: jak kotwić konstrukcje w trudnych warunkach?

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Stairs

Ventilated facades

Full list of variations

Diameter
Head type
Length
Material
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

Correctly fixed frame pin with the shortest expansion zone.

Installation data

Approvals and publications

Technical library

(5)

Technical assessments(2)

ETA-18/0818_19-03-2025

ETA-18/0818

Download

UKTA-22/6347

UKTA-22/6347

Download
Declarations(2)

DoP-18/0818 R-FFS_06-05-2025

DoP-18/0818 R-FFS

Download

UKTA-DoP-22/6347-R-FFS

Download
Certificates(1)

1488-CPR-0615/Z

CPR

Download

Catalogues and product cards

(5)

Product cards(2)

Product Card

Download

Product card

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN - PDF

Download
