  2. FIX Nylon expansion plug 12x60 mm with hex head screw 8,0x60 mm - plastic bag - 6 pcs.

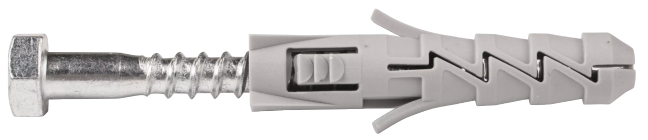

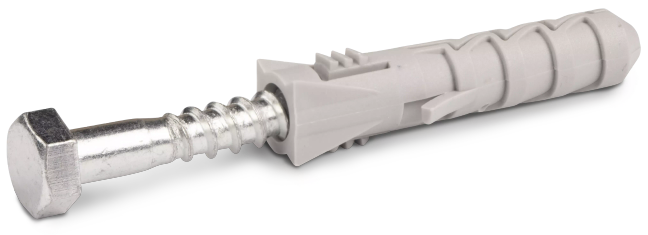

FIX Nylon expansion plug 12x60 mm with hex head screw 8,0x60 mm - plastic bag - 6 pcs.

Solid walls

R-S3-FIX-N-1260/6

5906675382852

Rawlplug

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

Define product parameters:

Diameter
Screw length
Packaging and quantity

Related products

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Features

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

  • Two-way expansion mechanism provides a strong anchorage in solid base materials.
  • Anti-rotation fins prevent spinning during tightening of the screw.
  • Engineered grip feature for extra holding power.
  • Small edge distances achievable.
  • Flange ensures flush fit to surface.

Substrates

Concrete

Concrete

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Aerated concrete

Aerated concrete

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Decor

Electrical Installations

Frames, profiles, slats

Letterboxes

Lighting

Services

Customized packaging

Customized packaging

Designing POS Displays

Designing POS Displays

Technical library

Technical library

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Insert FIX plug into the hole and tap home.

4

Attach the fixture and tighten the screw to the required tightening torque.

5

The plug is correctly installed in the concrete base.

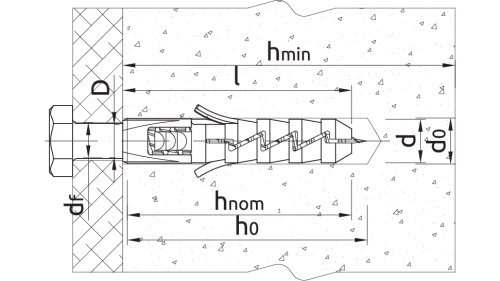

Installation data

Approvals and publications

Technical library and approvals

Choose document:

KOT-2022/2086

020_UWB-1091/Z

KDWU-2022-2086-FIX

Product card and catalogues

Choose product catalog:

Specification Design Guide

General catalogue - PDF
