  1. Mainpage

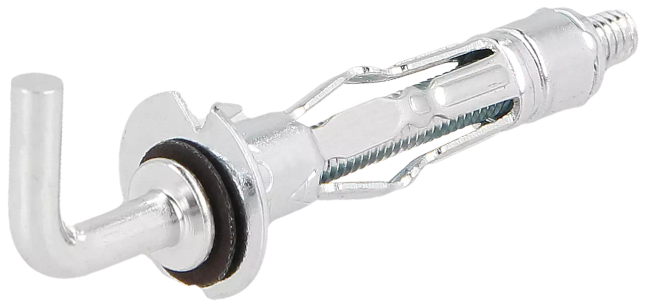

  2. SM Interset M4x32 mm with angle hook - plastic bag - 6 pcs.

Plasterboard

R-S3-SM04032K/6

5906675251783

Rawlplug

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

Define product parameters:

Metric diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack0.26 kg

  • Bulk pack

    30.00 pack1.80 kg

  • Pallet

    1680.00 pack101.02 kg

Related products

HSS ground drill bits 7x109 mm - plastic box - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

HSS ground drill bits 7x109 mm - plastic box - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

  • The fixing can be installed using normal screwdriver, or installation pliers.
  • Fixtures can be removed and re-fitted.
  • Combination head screw supplied.
  • Due to extensive range the SM INTERSET is suitable for board building materials with a thickness 2-38mm, it allows for a number of different applications.
  • Large contact area of expanded arms increases load-bearing capacity and security.
  • Hinged legs designed to maximise load-bearing capacity.

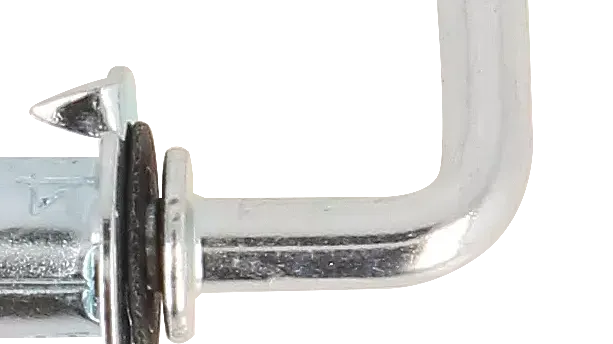

  • Integral anti-rotation lugs.
  • One piece stamping, with integral thread and flange for increased reliability.

Chipboard

Chipboard

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Oriented strand board

Oriented strand board

Plasterboard

Plasterboard

Chipboard

Chipboard

Oriented strand board

Oriented strand board

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Bathroom accessories

Curtain rods

Decor

Lighting

Mirrors

Radiators

Metric diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

4ALL Universal plug 5x25 mm with angle hook - plastic bag - 12 pcs.

UNO® Universal plug 6x28 mm, with angle hook - plastic bag - 10 pcs.

4ALL Universal plug 5x25 mm with angle hook - plastic bag - 12 pcs.

UNO® Universal plug 6x28 mm, with angle hook - plastic bag - 10 pcs.

Installation manual

Installation step by step

1

Drill a hole of required diameter.

2

Insert the fixing into the hole. Tap in lightly, ensuring that the anti-rotation lugs penetrate the face of the base material.

3

With the hole drilled and the fixing inserted, the setting tool or screw driver is used to pull the screw head, thus expanding the fixing body.

4

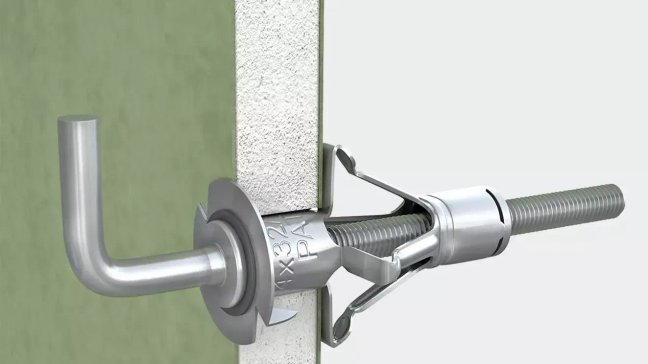

Correctly installed fastener for plasterboards.

Installation data
