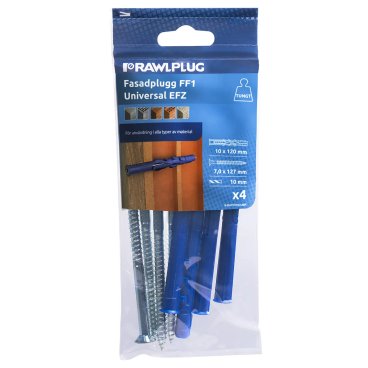

  2. Nylon frame fixing countersunk version - zinc plated R-FF1-N-L10x120mm - plastic bag 4 pcs.

Universal
New

R-S9-FF1N10L120/4

5906675205885

Universal countersunk frame fixing with screw for many applications

Download model Perform the calculations

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack0.82 kg

  • Bulk pack

    20.00 pack3.49 kg

  • Pallet

    1760.00 pack307.12 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

Universal countersunk frame fixing with screw for many applications

  • The countersunk plug for flush fixing of soft material (eg. timber).
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).
  • Internal plug geometry designed to fit the screw head.
  • Plug design ensures multi-axis expansion.

rawlplug_ff1_universal

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Bathroom accessories

Doors and windows

Electrical Installations

Furniture

Handrails

Satellite dishes

Ventilated facades

Diameter
Length
Corrosion protection
Packaging and quantity
Index
EAN
Catalog price for pack. net

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50 mm - cardboard box - 50 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50 mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the FF1 screw.

6

Properly fixed frame pin with screw.

7
