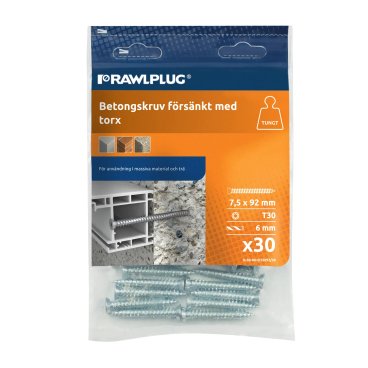

  2. WHO Concrete frame screws 7,5x92 mm - plastic bag - 30 pcs.

Solid walls
New

R-S9-WHO75092/30

5906675215914

Rawlplug

Special frame screw for window and door installation

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    5.00 pack2.57 kg

  • Bulk pack

    10.00 pack5.33 kg

  • Pallet

    880.00 pack469.39 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Brickdrill SDS PLUS non-impact drill bits 6.0x260 m - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Brickdrill SDS PLUS non-impact drill bits 6.0x260 m - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

Special frame screw for window and door installation

  • Easily removed for temporary works.
  • Expansion-free fixing imposes less stress on substrate during installation.
  • High load resistances from a relatively small hole diameter.
  • Flat head for flush installation with the window and door frames.

Concrete

Concrete

Aerated concrete

Aerated concrete

Solid brick

Solid brick

Hollow brick

Hollow brick

Approved surfaces

Doors and windows

Formwork

Frames, profiles, slats

Suspended Ceilings

Wooden constructions

Gates

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-FF1 Nylon Frame Fixing 8 x 100mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x100 mm - cardboard box - 25 pcs.

WHS Concrete frame screws 7,5x92 mm - cardboard box - 100 pcs.

R-FF1 Nylon Frame Fixing 8 x 100mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x100 mm - cardboard box - 25 pcs.

WHS Concrete frame screws 7,5x92 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill a hole of the appropriate diameter and depth into the concrete base.

2

Blow out the dust at least 4 times with the hand pump.

3

Tighten the screw with a screwdriver with adjustable torque in the concrete substrate.

4

Correctly fixed screw to the concrete base.

Installation data

Technical library

(3)

Technical assessments(1)

ITB_KOT_2017_0169wydanie4

Download
Declarations(1)

KDWU_2017_0169_4_WHO_3_

Download
Certificates(1)

020-UWB-1123/Z-WHO-WHS

Download

Catalogues and product cards

(4)

Product cards(1)

Product cart

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27 - PDF

Download
