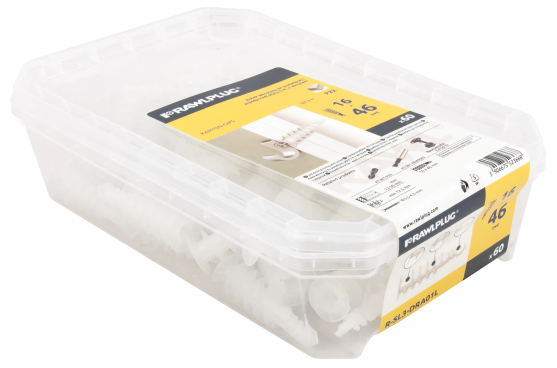

  2. DRA-01-LONG Nylon self-drill plasterboard 16x46mm - plastic box - 60 pcs.

Plasterboard
New

R-SL3-DRA01L

5906675523668

RawlplugRawl

Perfect for installation light elements to plaster substrates

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Unit pack

    12.00 pack2.55 kg

  • Bulk pack

    12.00 pack2.55 kg

  • Pallet

    360.00 pack76.38 kg

Related products

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Bit adapter with 2 magnets 60 mm - plastic box - 1 pcs.

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Bit adapter with 2 magnets 60 mm - plastic box - 1 pcs.

Features

Perfect for installation light elements to plaster substrates

  • Innovative elongated design provides quick and secure installation in double and single plasterboard, gypsum blocks, aerated concrete (density up to 2,5 Mpa).
  • Durable nylon and fibreglass blend for high load capacity.

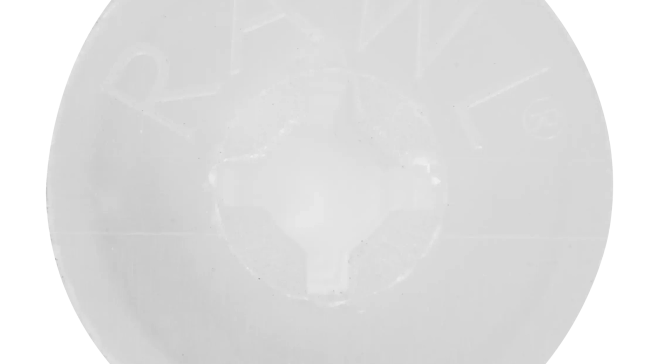

  • Flange which comes perfectly flush with the substrate, preventing the plug from going too deep into plasterboard.
  • Integrated drill bit which eliminates the need for pre-drilling.
  • All you need to drive the plug and the screw in place is a screwdriver and one bit: PZ2.
  • Recommended use of screws with a minimum lenght of 40mm and a diameter of 3.5-4.5mm.
  • Must only be used with screws provided.

Aerated concrete block

Aerated concrete block

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Decor

Lighting

Mirrors

Cabinets, brackets and wall brackets

Packaging and quantity
Index
EAN
Catalog price for pack. net

R-DRAM Metal Self-drill fixing for drywall 13x31 mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm - cardboard box - 100 pcs.

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

R-DRAM Metal Self-drill fixing for drywall 13x31 mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm - cardboard box - 100 pcs.

R-SM Interset M4x32 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Using a screwdriver, screw in the connector until the correct depth is obtained. When using a multi-speed screwdriver, select gear 1 (lower speed gear). Taking care not to drag the fastening - you can screw with sensitivity and use the clutch settings on the screwdriver.

2

Maintaining a firm pressure, screw in fixing until flush with the base material.

3

Tighten until it stops.
