R-SL3-FX-06L060
5906675445700
The hammer fixing for fast, simple, cost-effective installations
Define product parameters:
Unit pack
12.00 pack4.38 kg
Bulk pack
12.00 pack4.38 kg
Pallet
360.00 pack131.28 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
The hammer fixing for fast, simple, cost-effective installations

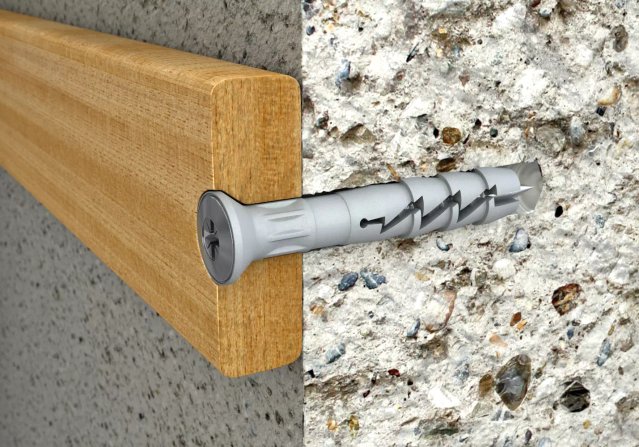

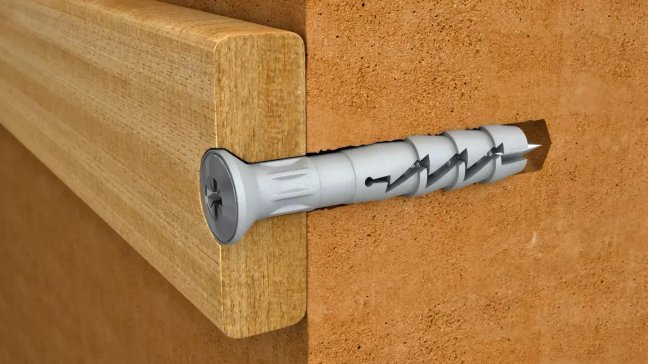

Approved surfaces

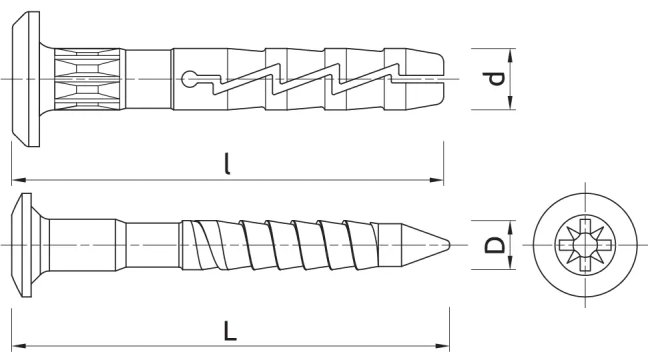

Diameter | Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|

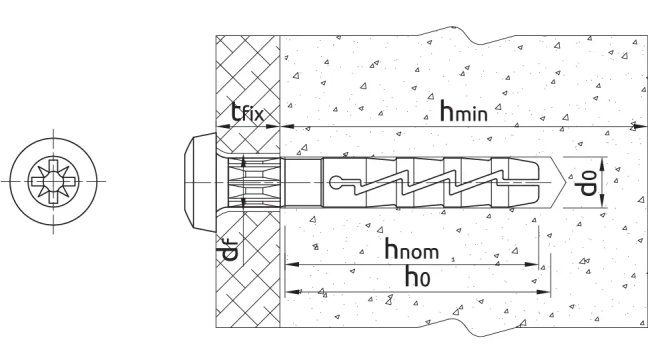

Drill a hole to the required diameter and depth for rebar size being used.
Blow out the dust at least 4 times with the hand pump.
Insert FX plug into the hole through fixture.
Hammer the nail into the plastic sleeve until fixing is secure and flush with the fixture.
The sleeve of the expansion plug is correctly attached.
Drill a hole to the required diameter and depth for rebar size being used.
Blow out the dust at least 4 times with the hand pump.
Place the screw in the sleeve through the fastened element.
Hammer the nail into the plastic sleeve until fixing is secure and flush with the fixture.
Pin is correctly fastened.
Drill a hole to the required diameter and depth for rebar size being used.
Blow out the dust at least 4 times with the hand pump.
Place the screw in the sleeve through the fastened element.
Hammer the nail into the plastic sleeve until fixing is secure and flush with the fixture.
Pin is correctly fastened.
