  2. R-SM Interset M6x52 mm - cardboard box - 100 pcs.

R-SM Interset M6x52 mm - cardboard box - 100 pcs.

Plasterboard

R-SM-06052

5906675172460

Rawlplug

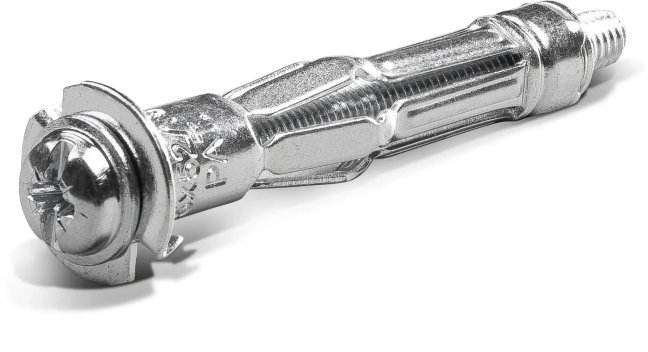

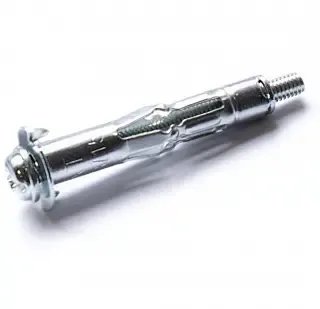

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

Define product parameters:

Metric diameter
Length
Packaging and quantity

Related products

Features

Interset fixing for permanent anchorages in cavity walls. Zinc-plated metal fixing with metric screw

  • The fixing can be installed using normal screwdriver, or installation pliers.
  • Fixtures can be removed and re-fitted.

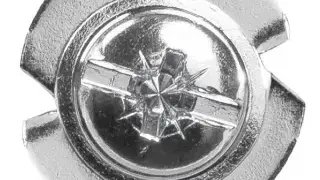

  • Combination head screw supplied
  • Due to extensive range the SM INTERSET is suitable for board building materials with a thickness 2-38mm, it allows for a number of different applications.
  • Large contact area of expanded arms increases load-bearing capacity and security.
  • Hinged legs designed to maximise load-bearing capacity

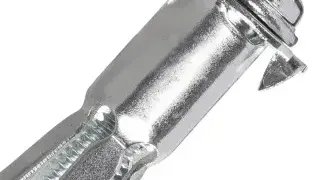

  • Integral anti-rotation lugs
  • One piece stamping, with integral thread and flange for increased reliability.

Substrates

Oriented strand board

Oriented strand board

Chipboard

Chipboard

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Applications

Bathroom accessories

Curtain rods

Decor

Lighting

Mirrors

Radiators

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Tool service

Tool service

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter.

2

Insert the fixing into the hole. Tap in lightly, ensuring that the anti-rotation lugs penetrate the face of the base material.

3

With the hole drilled and the fixing inserted, the setting tool or screw driver is used to pull the screw head, thus expanding the fixing body.

4

Correctly installed fastener for plasterboards.
