SafetyPlus expansion sleeve anchor with hex head bolt R-SPL M16x150 mm - SafetyPlus expansion sleeve anchor with hex head bolt R-SPL M8x90 mm - cardboard box - 25 pcs.

Solid walls

R-SPL-12150/50

5010445500404

RawlplugRawl

High performance mechanical anchor - loose bolt option

Define product parameters:

Metric diameter
Length
Maximum thickness of the mounted element
Packaging and quantity

Related products

Features

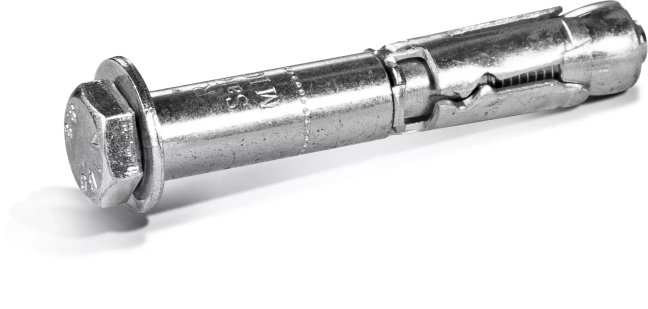

High performance mechanical anchor - loose bolt option

  • Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured
  • Fire resistant
  • Design of SafetyPlus allows for easy through fixing

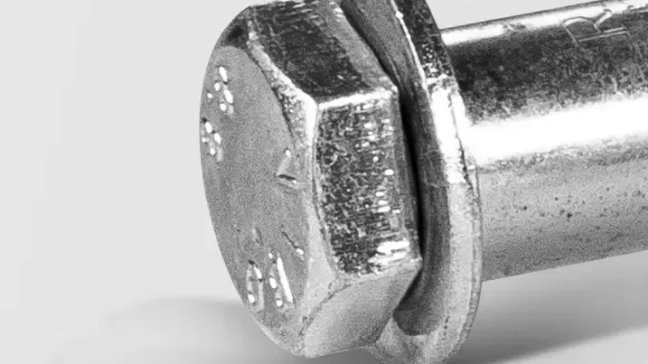

  • Case-hardened nut with optimum taper angle for enhanced expansion

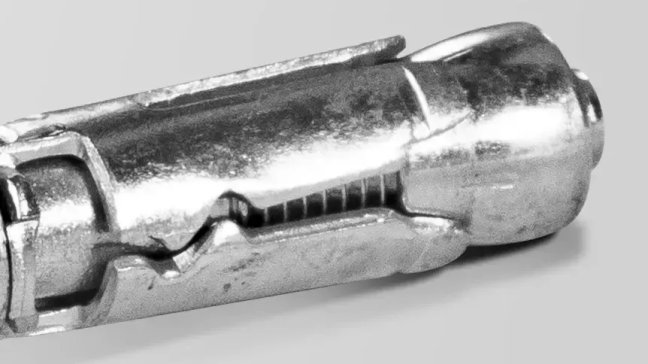

  • Unique zig-zag feature provides balanced expansion, ensuring secure setting and maximised load-bearing capacity
  • High performance in non-cracked concrete confirmed by ETA Option 7

Substrates

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Barriers

Concrete structures

Gates

Repair of machinery

Steel structures

Storage racks

Ventilated facades

Poles and road signs

Substitutes

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

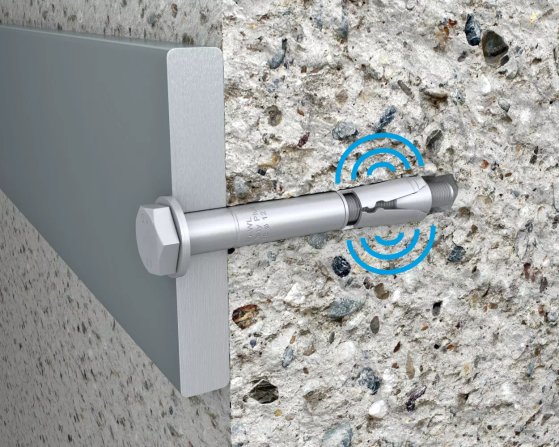

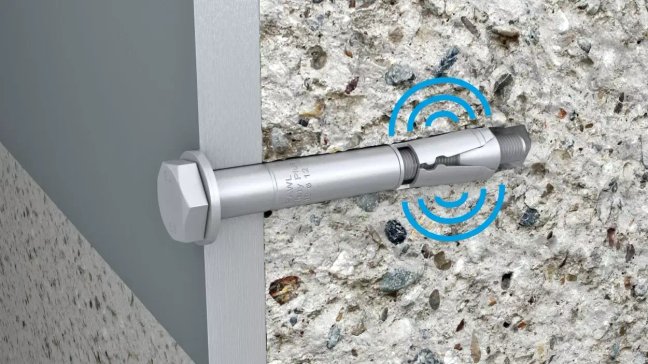

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Tighten to the recommended torque.

5

The anchor is correctly fixed.

Approvals and publications

Technical library and approvals

Choose document:

ETA-11/0126

1488-CPR-0635/W

DoP-11/0126 R-SPL

UKTA-22/6101

UKTA-DoP-22/6101 R-SPL

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
