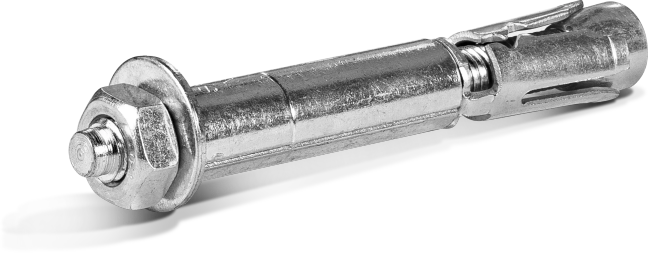

R-SPL Safetyplus Anchor Bolt Projecting M16 x 185mm - cardboard box - 10 pcs.

Solid walls
Outlet

R-SPL-BP-16185/50

5010445501555

RawlplugRawl

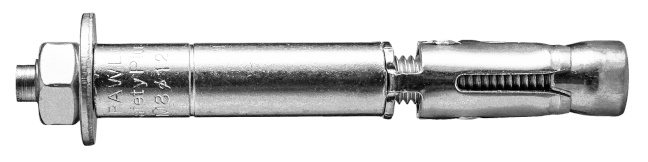

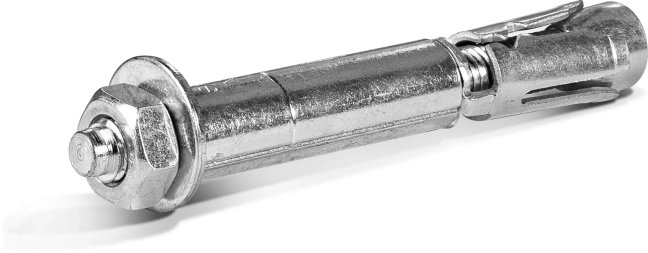

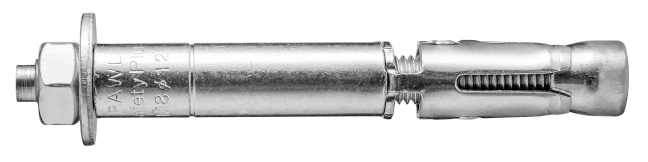

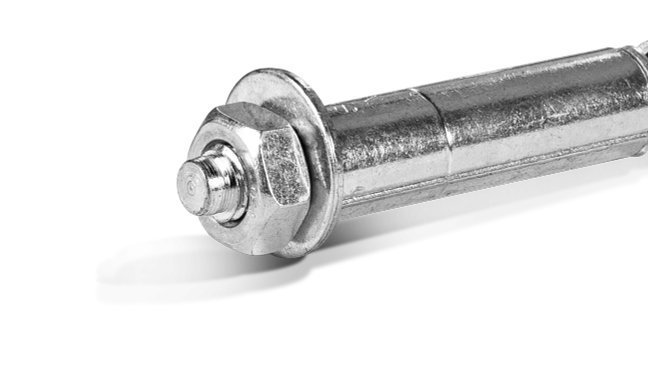

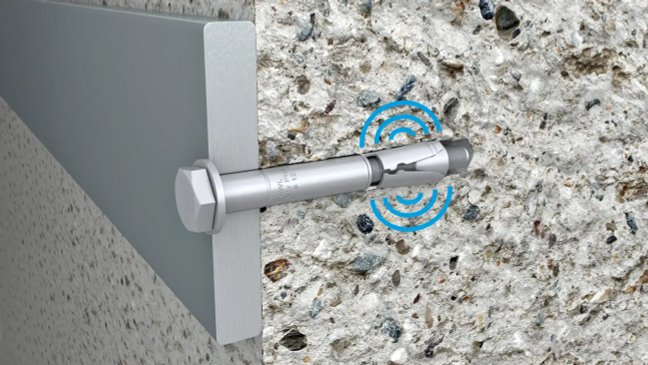

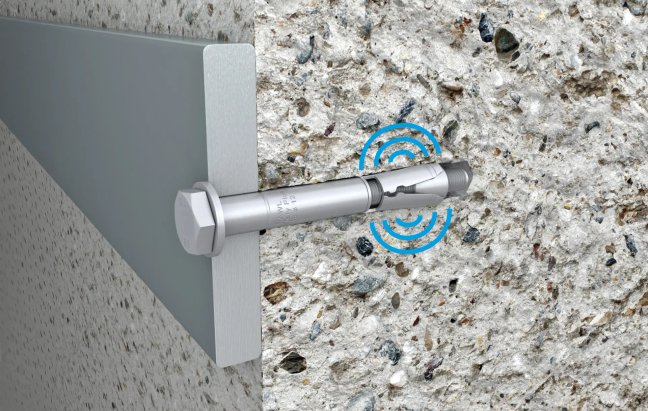

High performance mechanical anchor - bolt projecting version

Define product parameters:

Metric diameter
Length
Mocowanie
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    10.00 pcs.5.48 kg

  • Bulk pack

    10.00 pcs.5.48 kg

  • Pallet

    1200.00 pcs.

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Turbodrill SDS Max drill bit 24x200x340 mm - plastic hanger - 1 pc.

SDS max drill for drilling deep holes in reinforced concrete, concrete, stone and hard brick

Aggressor SDS Plus drill bits 24x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Turbodrill SDS Max drill bit 24x200x340 mm - plastic hanger - 1 pc.

SDS max drill for drilling deep holes in reinforced concrete, concrete, stone and hard brick

Aggressor SDS Plus drill bits 24x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Features

High performance mechanical anchor - bolt projecting version

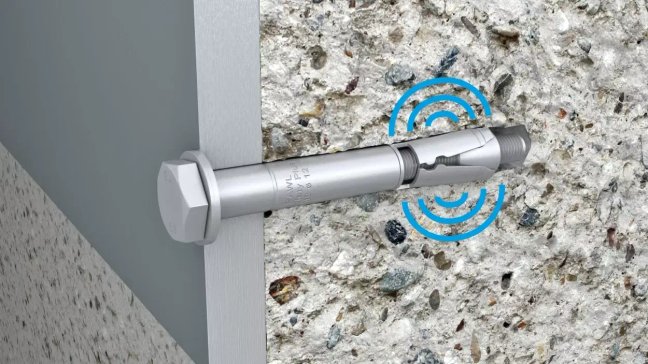

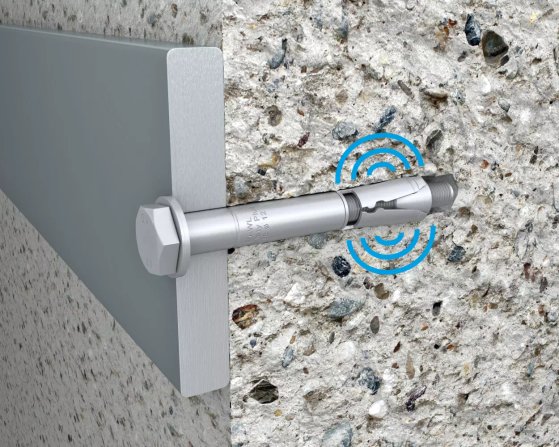

  • Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured.
  • Fire resistant.
  • Design of SafetyPlus allows for easy through fixing.

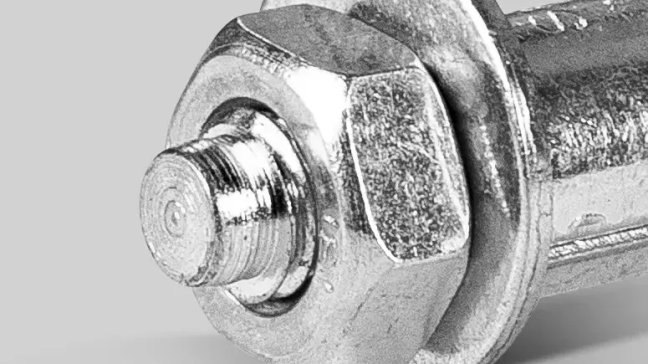

  • Case-hardened nut with optimum taper angle for enhanced expansion.

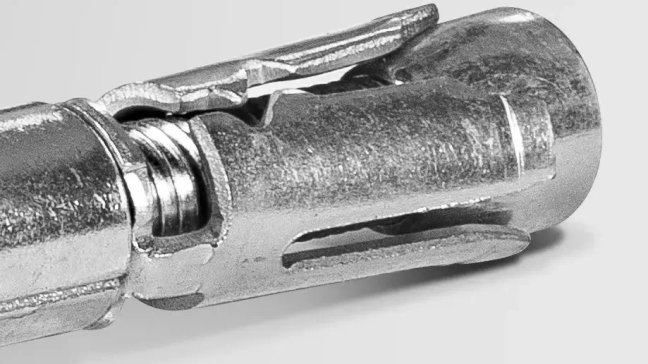

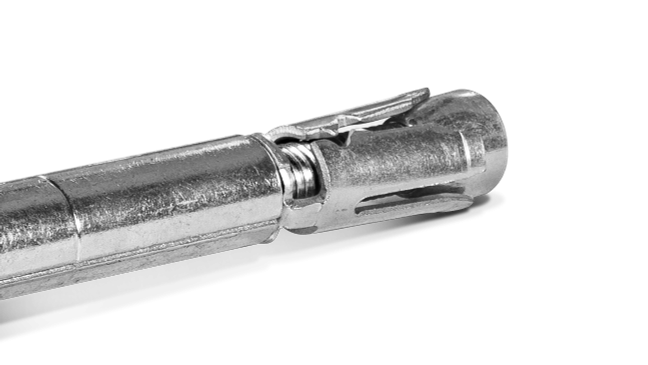

  • Unique zig-zag feature provides balanced expansion, ensuring secure setting and maximised load-bearing capacity.
  • High performance in non-cracked concrete confirmed by ETA Option 7.

Substrates

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Barriers

Concrete structures

Gates

Repair of machinery

Steel structures

Storage racks

Ventilated facades

Poles and road signs

Substitutes

R-SPL Safetyplus Anchor Loose Bolt M16 x 170mm - cardboard box - 10 pcs.

High performance mechanical anchor - loose bolt option

R-SPL Safetyplus Anchor Loose Bolt M16 x 170mm - cardboard box - 10 pcs.

High performance mechanical anchor - loose bolt option

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth. Note: When fixing into brickwork, mortar joints should be avoided.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Tighten to the recommended torque.

5

The anchor is correctly fixed.

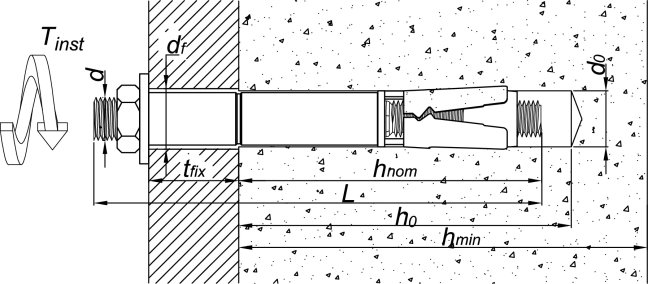

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-11/0126

1488-CPR-0635/W

DoP-11/0126 R-SPL

UKTA-22/6101

UKTA-DoP-22/6101 R-SPL
