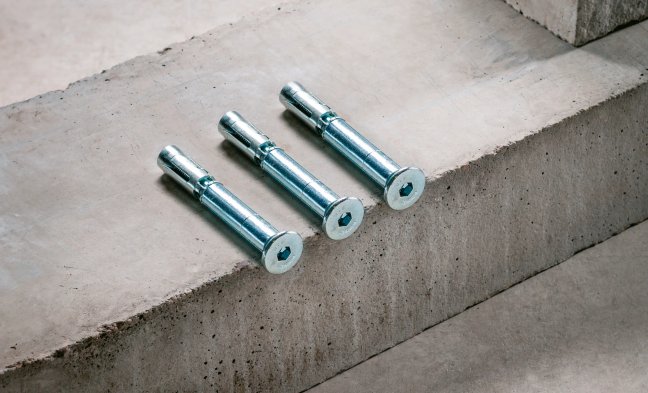

R-SPL Safetyplus Anchor Countersunk M8 x 90mm - cardboard box - 50 pcs.

Solid walls

R-SPL-C-08090/20

5010445502101

High performance mechanical anchor - countersunk version

Weight and bulk packaging

Unit pack
50.00 pcs.3.59 kg
Bulk pack
50.00 pcs.3.59 kg
Pallet
8000.00 pcs.600.04 kg

Ask for the product

Contact with us and check out our terms of cooperation

Ask for the product

Contact with us and check out our terms of cooperation

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 12x150x210 mm - plastic hanger - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torsion Hex6 25 mm bits - plastic box - 20 pcs.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 12x150x210 mm - plastic hanger - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torsion Hex6 25 mm bits - plastic box - 20 pcs.

Features

High performance mechanical anchor - countersunk version

Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured.
Fire resistant.
Design of SafetyPlus allows for easy through fixing.

Case-hardened nut with optimum taper angle for enhanced expansion.
Unique zig-zag feature provides balanced expansion, ensuring secure setting and maximised load-bearing capacity.
High performance in non-cracked concrete confirmed by ETA Option 7.

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Barriers

Concrete structures

Gates

Poles and road signs

Steel structures

Storage racks

Ventilated facades

Metric diameter	Length	Mocowanie	Packaging and quantity	Index	EAN	Catalog price for pack. net

R-RBL Rawlbolt Shield Anchor, Loose Head, M8 x 80mm ETA Approved - cardboard box - 50 pcs.

R-RBL Rawlbolt Shield Anchor, Loose Head, M8 x 95mm ETA Approved - cardboard box - 50 pcs.

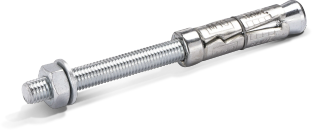

R-RBP Rawblbolt Shield Anchor, Projection Head, M8 x 125mm ETA Approved - cardboard box - 50 pcs.

R-RBL Rawlbolt Shield Anchor, Loose Head, M8 x 80mm ETA Approved - cardboard box - 50 pcs.

R-RBL Rawlbolt Shield Anchor, Loose Head, M8 x 95mm ETA Approved - cardboard box - 50 pcs.

R-RBP Rawblbolt Shield Anchor, Projection Head, M8 x 125mm ETA Approved - cardboard box - 50 pcs.

Installation manual

Installation step by step

Installation data

Technical library

(5)

Technical assessments(2)

ETA-11/0126

UKTA-22/6101

Declarations(2)

DoP-11/0126 R-SPL

UKTA-DoP-22/6101 R-SPL

Certificates(1)

1488-CPR-0635/W

Catalogues and product cards

(4)

Product cards(1)

Product card

Catalogues(3)

Catalogue Offer (overview) - EN

Specification Design Guide

General Catalogue EN 2026/27 - PDF
