R-SPL-C-10105/25
5010445502200

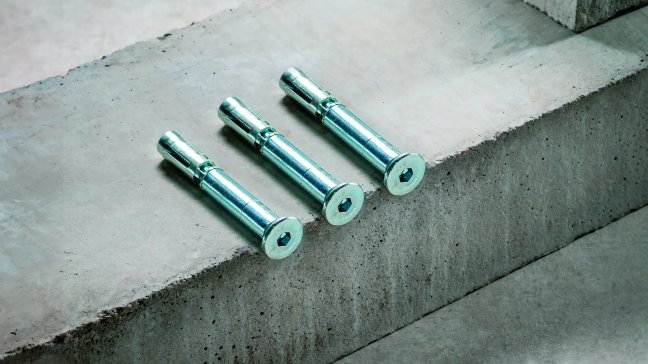

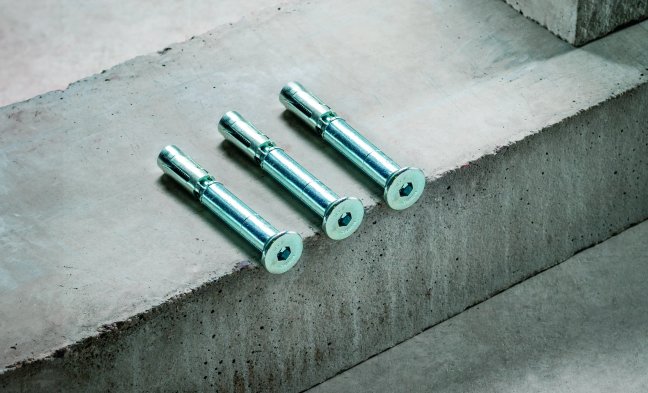

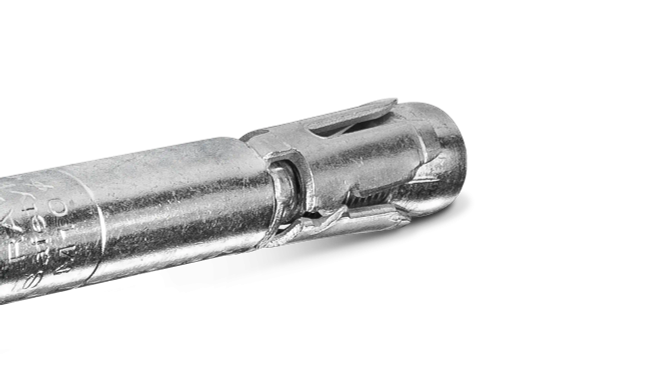

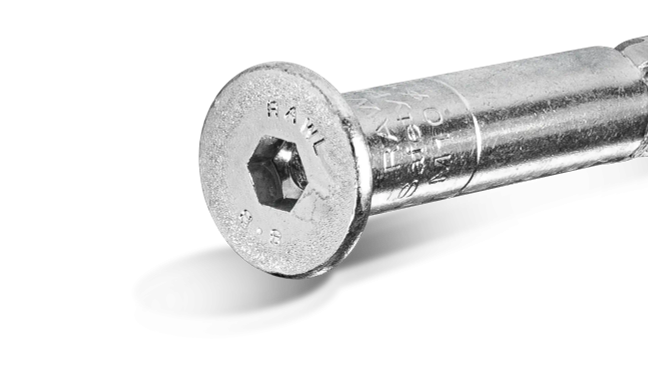

High performance mechanical anchor - countersunk version
Define product parameters:
Unit pack
50.00 pcs.6.59 kg
Bulk pack
50.00 pcs.6.59 kg
Pallet
8000.00 pcs.1079.72 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation

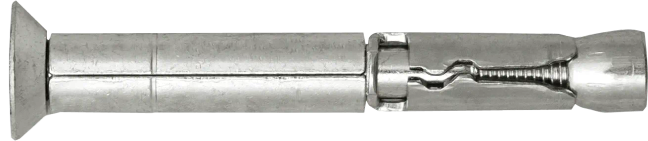

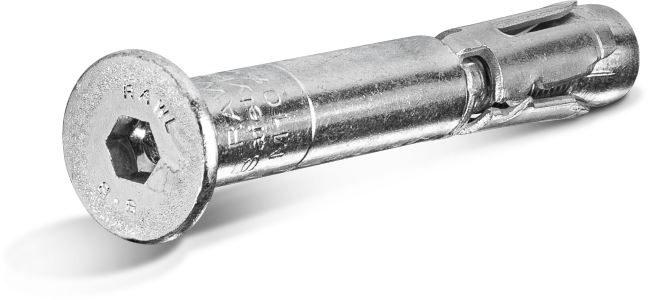

High performance mechanical anchor - countersunk version
Approved surfaces
Metric diameter | Length | Mocowanie | Type of package | Pieces. per pack. | Index | EAN | Catalog price for pack. net | |
|---|---|---|---|---|---|---|---|---|
| M10 | 105 mm | 25 mm | Cardboard box | 50 | R-SPL-C-10105/25 | 5010445502200 | €0.00 | Contact with us and check out our terms of cooperation |
| M20 | 90 mm | 20 mm | Cardboard box | 50 | R-SPL-C-08090/20 | 5010445502101 | €0.00 | Contact with us and check out our terms of cooperation |
| M16 | 145 mm | 30 mm | Cardboard box | 10 | R-SPL-C-16145/30 | 5010445502507 | €0.00 | Contact with us and check out our terms of cooperation |
| M12 | 125 mm | 30 mm | Cardboard box | 25 | R-SPL-C-12125/30 | 5010445502354 | €0.00 | Contact with us and check out our terms of cooperation |
Design Consulting
E-learning training
Learn moreTraining at the Rawlplug Academy center
Technical Support 2
Drill a hole of required diameter and depth. Note: When fixing into brickwork, mortar joints should be avoided.
Blow out the dust at least 4 times with the hand pump.
Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.
Tighten to the recommended torque.

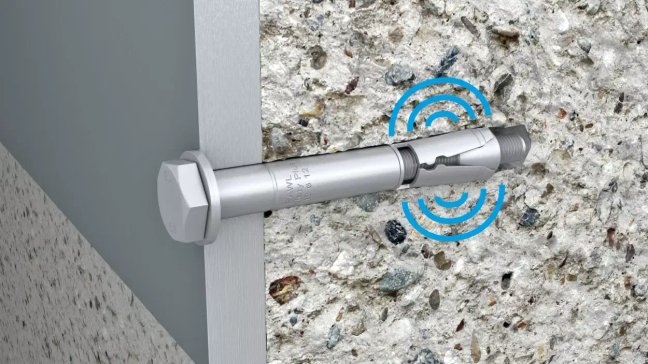

The anchor is correctly fixed.
