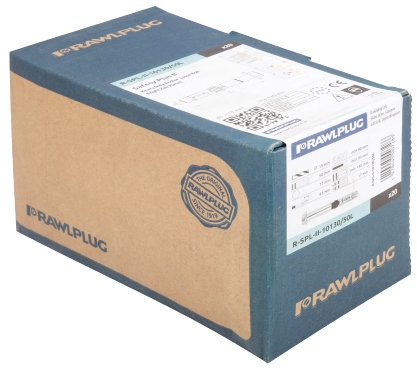

  2. Loose bolt version SafetyPlus R-SPLII M10x130 mm - cardboard box - 20 pcs.

Loose bolt version SafetyPlus R-SPLII M10x130 mm - cardboard box - 20 pcs.

Solid walls
Outlet

R-SPL-II-10130/50L

5010445007286

Rawlplug

High performance mechanical anchor - bolt projecting version

Define product parameters:

Metric diameter
Length
Mocowanie
Packaging and quantity

Related products

Features

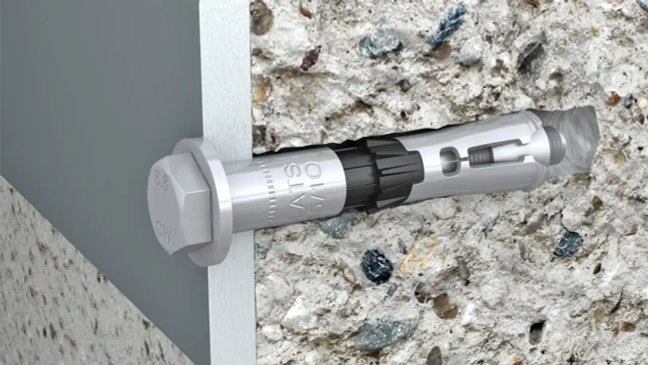

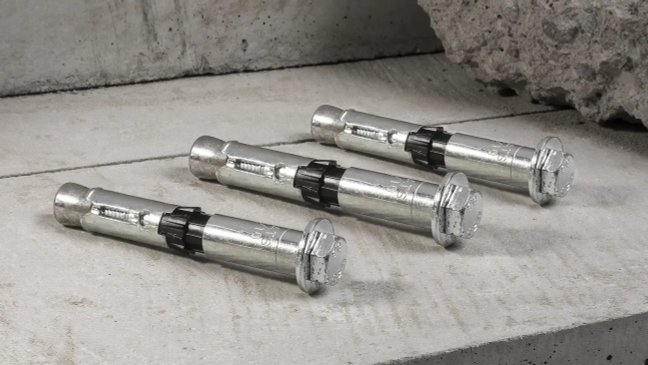

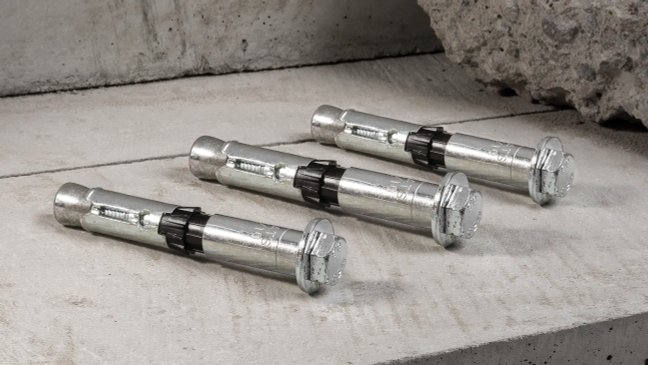

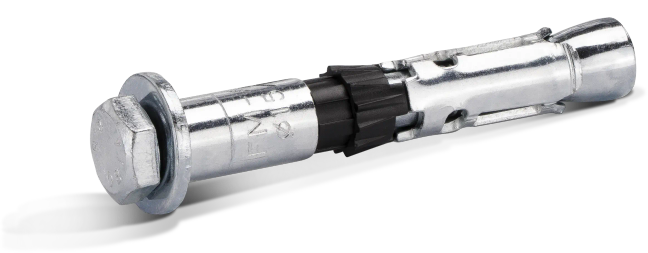

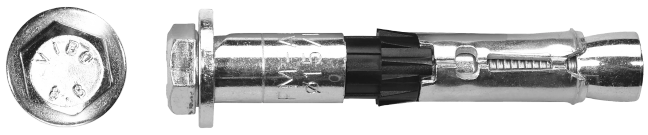

High performance mechanical anchor - bolt projecting version

  • High performance in non-cracked concrete confirmed by ETA Option 7
  • Design of SafetyPlus allows for easy through fixing
  • Integral controlled collapse and anti-rotation feature ensures fixture is firmly secured
  • Case-hardened nut with optimum taper angle for enhanced expansion

Substrates

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Barriers

Poles and road signs

Storage racks

Steel structures

Substitutes

Services

Rawlplug Academy

Rawlplug Academy

Design calculations

Design calculations

Design Consulting

Design Consulting

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Tighten to the recommended torque.

5

The anchor is correctly fixed.
