  2. Metric threaded rod, hexagonal head, steel class 8.8, hot dip galvanized STUDS 12x260mm - cardboard box - 10 pcs.

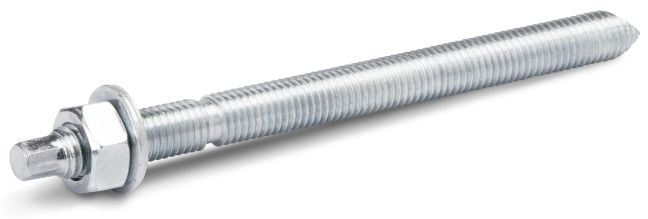

Metric threaded rod, hexagonal head, steel class 8.8, hot dip galvanized STUDS 12x260mm - cardboard box - 10 pcs.

Universal

R-STUDS-12260-88HD

5906675091808

Rawlplug

Threaded rod made of class 8.8 steel with hot-dip galvanization for use with bonded anchors

Define product parameters:

Diameter
Length
Rod end
Corrosion protection
Packaging and quantity

Related products

Polyester bonded anchor R-KEM-II standard - plastic cartouche - 300 ml

Polyester bonded anchor without styrene, recommended for medium loads, suitable for use in most construction substrates

Hybrid bonded anchor R-KER-II standard - plastic cartouche - 400 ml

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Rebardrill SDS Plus drill bits 14x250x310 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Rebardrill SDS Plus drill bits 14x400x460 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 14x400x460 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Features

Threaded rod made of class 8.8 steel with hot-dip galvanization for use with bonded anchors

  • Threaded rods provide high strength and good wear resistance
  • Threaded rod made of carbon steel class 8.8 is suitable for outdoor use and in damp conditions
  • Can be post-installed through fixture in some cases. (Consult technical advisory service)
  • Hexagonal head for convenient use with torque wrench

Substrates

Cracked concrete

Cracked concrete

Non-cracked concrete

Non-cracked concrete

Clay block

Clay block

Aerated concrete

Aerated concrete

Aerated concrete block

Aerated concrete block

Brick

Brick

Hollow brick

Hollow brick

Approved surfaces

Applications

Air conditioning / ventilation

Anchoring glued in with threaded rods

Barriers

Blinds and awnings

Boilers

Ceiling mounts

Elevators and escalators

Glass facades

Pipelines

Poles and road signs

Seats in public facilities

Steel structures

Tunnels

Ventilated facades

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

EasyFix

EasyFix

Installation guide

Installation manual

Installation step by step

1

Fill hole with the required resin to the recommended fill level. (Follow the relevant instructions for the resin product).

2

Insert the threaded stud slowly and with a slight twisting motion, until the required embedment depth is reached.

3

Leave to solidify for the time required for the application.

4

Attach fixture and tighten the nut to the required torque.

5

Item is properly attached.
