  2. UNO Set of universal plugs 6x28mm,8x32mm with screws and hooks - plastic box - 124 el.

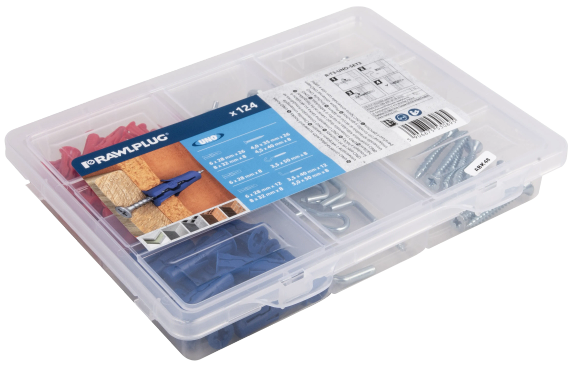

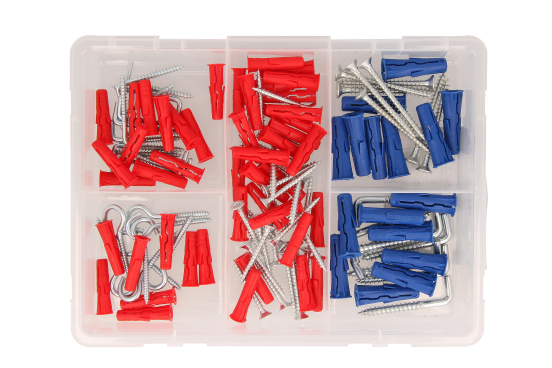

UNO Set of universal plugs 6x28mm,8x32mm with screws and hooks - plastic box - 124 el.

Universal
New

R-T3-UNO-SET2

5906675530895

Truly universal plug which fixes into any base material, solid or hollow.

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Unit pack

    8.00 pack2.50 kg

  • Bulk pack

    8.00 pack2.50 kg

  • Pallet

    640.00 pack200.16 kg

Features

Truly universal plug which fixes into any base material, solid or hollow.

  • 100% assurance of proper anchoring derived from unique split design of the plug in it's top part.
  • Recommended for unknown substrates and exploited holes.
  • Lip prevents plug slipping into over-sized holes.
  • Unique geometry guarantees maximum expansion and grip.
  • Short length enables successful use in thin walls.
  • Anti-rotation features prevent spinning in the hole.

Product video

E-learning UNO - Rawlplug Academy

UNO universal expansion plug for concrete, brick, hollow brick, and gypsum board. Reliable. From @Rawlplug.

Rawlplug UNO Universal Wall Plug

Substrates

Concrete C20/25-C50/60 (A)

Concrete C20/25-C50/60 (A)

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Vertically-perforated clay block

Vertically-perforated clay block

Hollow sand-lime brick

Hollow sand-lime brick

Aerated concrete

Aerated concrete

Plasterboard

Plasterboard

Approved surfaces

Applications

Bathroom accessories

Boilers

Cabinets, brackets and wall brackets

Electrical Installations

Lighting

Radiators

Full list of variations

Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

4all Set of universal plugs 6x30mm,8x40mm,8x65mm with screws and hooks - plastic box - 92 el.

High performance nylon plug for all types of substrates

4all Set of universal plugs 6x30mm,8x40mm,8x65mm with screws and hooks - plastic box - 92 el.

High performance nylon plug for all types of substrates

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter.

2

Remove drill cuttings in the hole using the brush four times.

3

Insert UNO plug into hole and tap home.

4

Insert screw of required diameter into the plug through fixture and tighten.

5

Fixing is ready.

Approvals and publications

Technical library

(1)

Technical assessments(1)

KOT-2022/2086 (2022-04-28) - FIX, UNO, 4ALL, UNO TIMBER

Plastic-metal expansion fasteners

Download

Catalogues and product cards

(3)

Catalogues(3)

Catalogue Offer (overview) - EN

Download

General Catalogue EN - PDF

Download

Specification Design Guide

Download
