Recessed pin for R-TFIX-8SX - single package - 1 pc.

Universal
Outlet

R-TFIX-TOOL-CSMBIT

5906675477350

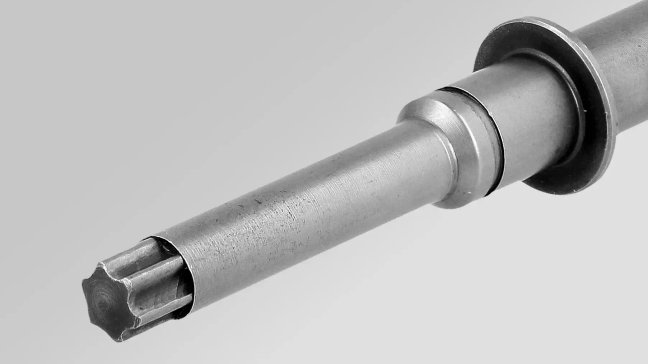

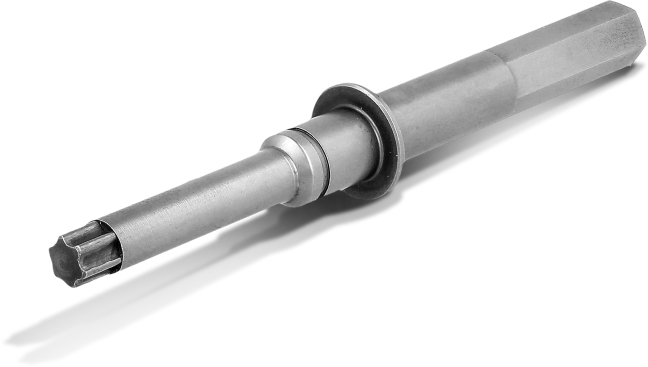

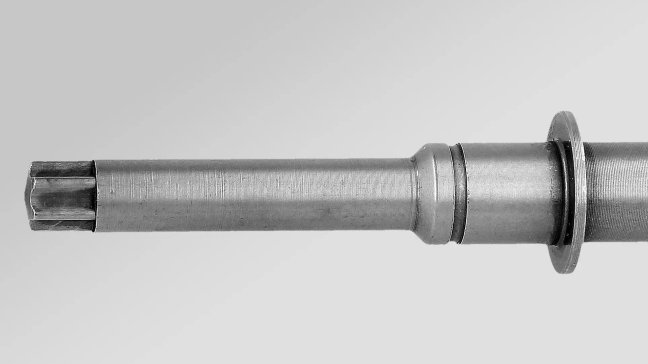

TX40 Setting tool with integrated disc and perforator for countersunk installation of screw-in fixing R-TFIX-8SX

Define product parameters:

Packaging and quantity

Features

TX40 Setting tool with integrated disc and perforator for countersunk installation of screw-in fixing R-TFIX-8SX

  • Ideal design of TX40 bit perfect suited to the screw-in R-TFIX-8S-X allows easy and stable installation.
  • Torx-40 bit type.
  • Countersunk installation (with post-installed insulation cap) reduces heat transmission and results in a homogenous insulation surface.
  • Integrated disc and perforator facilitates optimum R-TFIX-8SX countersunk installation, for the perfect flush with the surface of the insulation it is necessery to use additional insulation cap R-TFIX-CAP63.
  • User-friendly - enables fast installation.

Substrates

Mineral wool boards

Mineral wool boards

Polystyrene (EPS) boards

Polystyrene (EPS) boards

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

Services

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

E-learning training

E-learning training

Learn more
Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth.

2

Clean drilled hole 3 times.

3

Insert R-TFIX-TOOL-BLACK into recess in head moulding of R-TFIX-8SX screw.

4

Apply steady axial pressure, ensuring the disc of the setting tool is kept perpendicular to the fixing axis.

5

R_TFIX_8SX_05_1

6

After fixing the connector, close the hole with a mineral wool plug.

7

Correctly fastened pin.
