  1. Mainpage

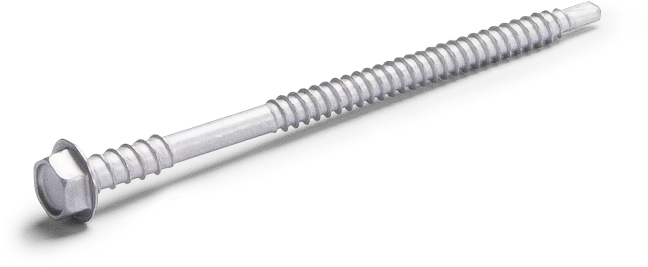

  2. R-WB Self-Drilling Hex Head Screws For Steel, 4.8 / 5.3 x 80mm, Zinc Flake - cardboard box - 100 pcs.

Steel

R-WB-48080

5906675102405

Rawlplug

Self-drilling screw with double thread for trapezoidal sheet - max. thickness 2x1.25 mm

Perform the calculations

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.0.94 kg

  • Bulk pack

    1200.00 pcs.11.57 kg

  • Pallet

    28800.00 pcs.277.80 kg

Related products

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

KCX Insulation Flange, 55mm - cardboard box - 400 pcs.

KCX Insulation Flange, 165mm - cardboard box - 150 pcs.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

KCX Insulation Flange, 105mm - cardboard box - 250 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Oval steel flange R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

KCX Insulation Flange, 55mm - cardboard box - 400 pcs.

KCX Insulation Flange, 165mm - cardboard box - 150 pcs.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

KCX Insulation Flange, 105mm - cardboard box - 250 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Oval steel flange R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Features

Self-drilling screw with double thread for trapezoidal sheet - max. thickness 2x1.25 mm

  • Hardened thread surface.
  • High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • The shape and type of thread is designed specifically for connecting to metal sheets.
  • The drill point is designed to provide a fast and hassle-free installation. Sharp point of the drill prevents movement of the surface of the fixture.
  • Reduced drilling point prevents the holes in thin metal sheets from being recalibrated.

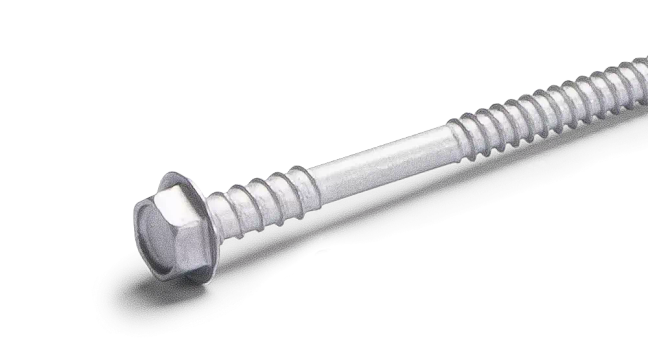

  • Two types of threads: one designed for mounting into construction, second under head thread, prevents external panel dents and helps to seal the connection.

Metal sheet & profiles

Metal sheet & profiles

Structural steel

Structural steel

Approved surfaces

Flat roofs

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Installation manual

Installation step by step

1

Position POW washer on insulation and insert: WBT, WCS, WW screw.

2

Using drilling machine, drive the screw into substrate until fixing depth is reached.

3

Correctly installed washer with screw WB.

Installation data

Technical library

(5)

Technical assessments(2)

ETA-09/0346

Download

UKTA-0836-22/6338

Download
Declarations(2)

DoP-09/0346 WB

Download

UKTA-DoP-22/6338-WB

Download
Certificates(1)

1488-CPR-0560/Z

Download

Catalogues and product cards

(4)

Product cards(1)

Product cart

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27 - PDF

Download
