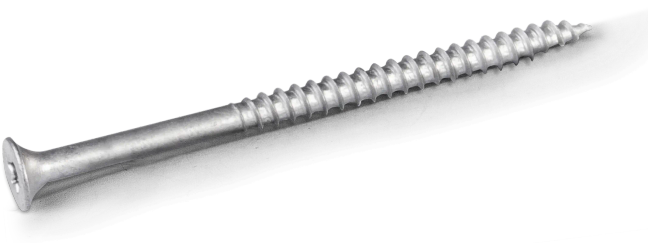

R-WO-T Screws for steel and timber T25 4.8x120 mm zinc flak coating - cardboard box - 200 pcs.

Steel

R-WO-48T120

5906675104706

Rawlplug

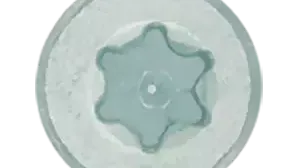

Screw for trapezoidal steel sheet substrate; max thickness of 0.9 mm, TORX25 drive

Define product parameters:

Length
Packaging and quantity

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torsion Torx25 T25 long bits, 350 mm - blister - 1 pc.

Long Torsion bits

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Torsion Torx25 T25 bits, 25 mm - blister - 3 pcs.

Long Torsion bits

Telescopic sleeve with round plate R-GOK 50x185 mm polypropylene - cardboard box - 100 pcs.

Telescopic sleeve for flat roof insulation fixings

Telescopic sleeve with round plate R-GOK 50x105 mm polypropylene - cardboard box - 250 pcs.

Telescopic sleeve for flat roof insulation fixings

Oval steel washer R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Telescopic sleeve with round plate R-GOK 50x65 mm polypropylene - cardboard box - 400 pcs.

Telescopic sleeve for flat roof insulation fixings

MKC Spreader plate, outer diameter 85 mm, inner diameter 14 mm, thickness 0.5 mm, stainless steel - cardboard box - 250 pcs.

Metal washer for use in combination with metal facade fixings from MBA range

Features

Screw for trapezoidal steel sheet substrate; max thickness of 0.9 mm, TORX25 drive

  • Pre-assembly with other components is possible before installation
  • The drill point is designed to provide a fast and hassle-free installation. Sharp point of the drill prevents movement of the surface of the fixture.
  • Hardened thread surface
  • High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.

Substrates

Metal sheet & profiles

Metal sheet & profiles

Chipboard

Chipboard

Timber

Timber

Oriented strand board

Oriented strand board

Approved surfaces

Applications

Flat roofs

Substitutes

Services

Design Consulting

Design Consulting

Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Installation guide

Installation manual

Installation step by step

1

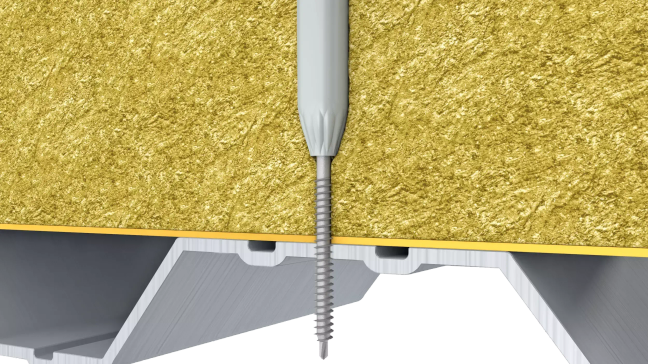

Place the plastic sleeve with the WO screw in the insulating material.

2

Using a screwdriver, screw in the connector with the screw until the appropriate depth is obtained.

3

Correctly mounted washer with the WO screw.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-23/0198

1488-CPR-0697/Z

DoP-23/0198-R-GOK-II

UKTA-0836-22/6338

UKTA-DoP-22/6338-R-WO

ITB-KOT-2022/2206 w1

020-UWB-1121/Z

KDWU-2022-2206-R-WO-T

TC-4765-15_OLD
