  1. Mainpage

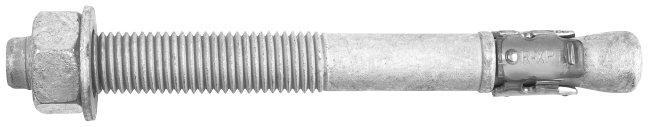

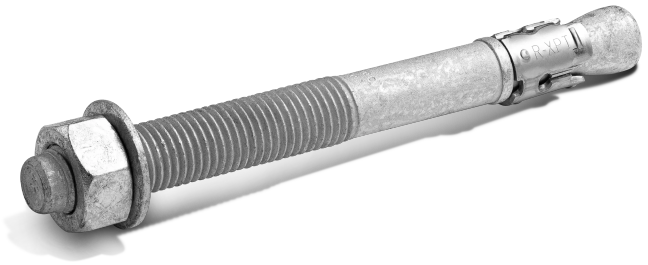

  2. R-XPTHD Throughbolt M20 x 125mm, Hot-Dipped Galv - cardboard box - 25 pcs.

Solid walls
Outlet

R-XPT-HD-20125/5

5906675234212

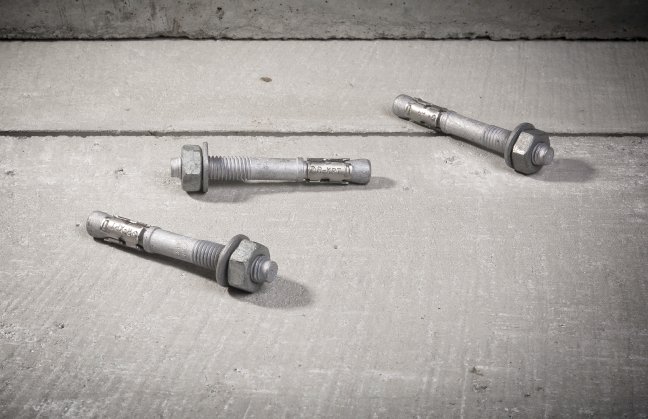

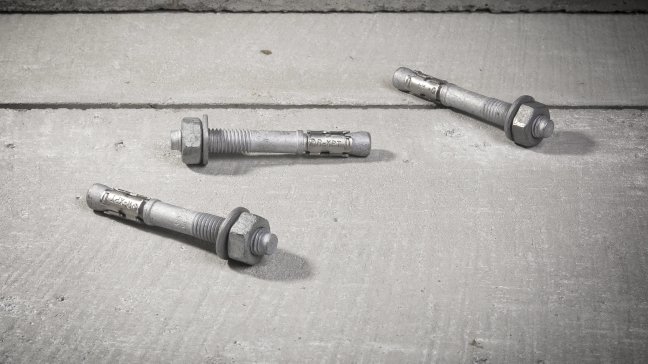

Hot Dip Galvanized throughbolt for non-cracked concrete

Perform the calculations

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    25.00 pcs.8.51 kg

  • Bulk pack

    25.00 pcs.8.51 kg

  • Pallet

    3000.00 pcs.1020.96 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - cardboard box - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - cardboard box - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Hot Dip Galvanized throughbolt for non-cracked concrete

  • High quality with cost effectiveness.
  • Design allows drilling and installing directly through the fixture and helps to reduce installation effort.
  • Increased corrosion resistance due to hot dip zinc external protection layer.
  • Embedment depth markings help to ensure precise installation of the anchor.
  • Cold formed body ensures consistent dimensional accuracy.
  • R-XPT is suitable for reduced embedment to avoid contact with reinforcement.

rawlplug_rxpt_throughb

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Balustrades

Barriers

Handrails

Poles and road signs

Profiled and cover sheets

Steel structures

Storage racks

Ventilated facades

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Using a torque wrench, tighten the nut to the required torque.

5

The anchor is properly fixed in the concrete base.

Installation data
