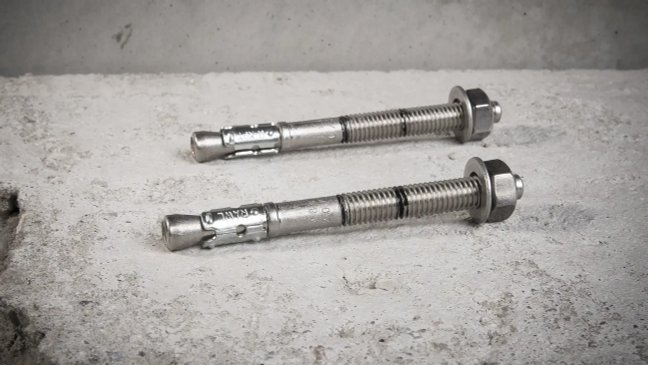

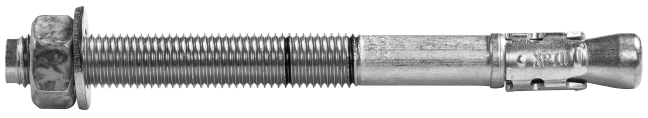

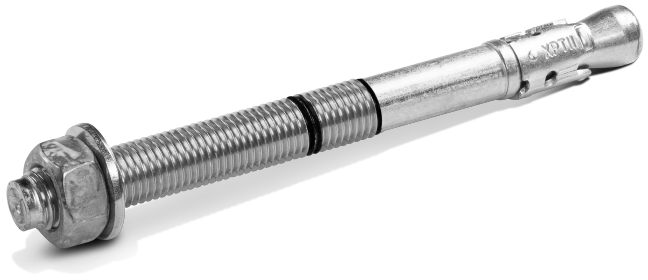

Stainless Steel Throughbolt R-XPT-II-A4 24x260 mm - cardboard box - 10 pcs.
Solid walls
R-XPTIIA4-24260/10
5906675100432
Define product parameters:
Diameter
Length
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features

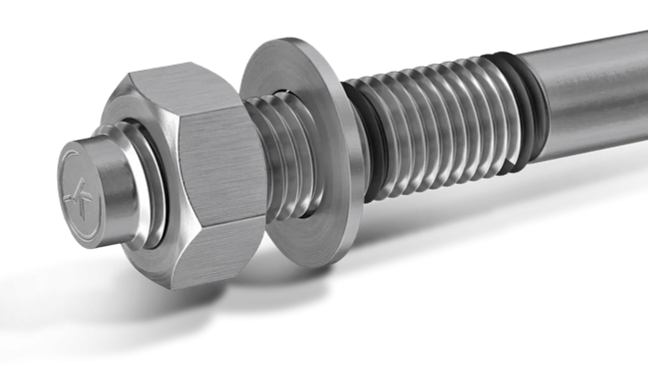

Stainless steel throughbolt for non-cracked concrete
- Stainless steel anchor for the highest corrosion resistance
- Highest quality ensures maximum load capability

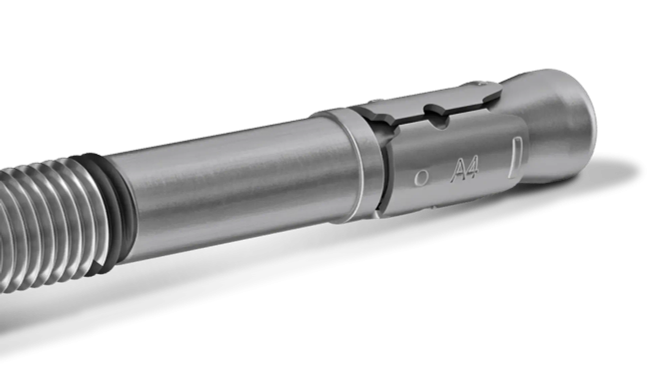

- Embedment depth markings help to ensure precise installation of the anchor

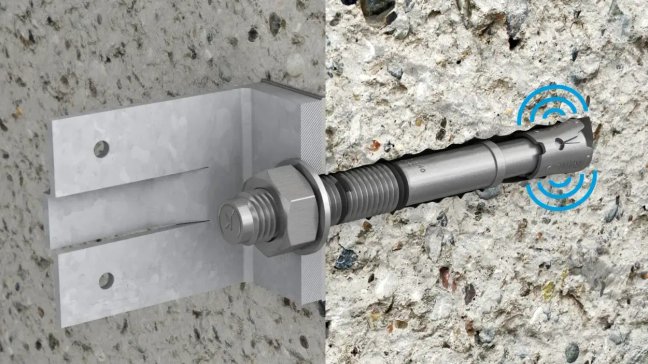

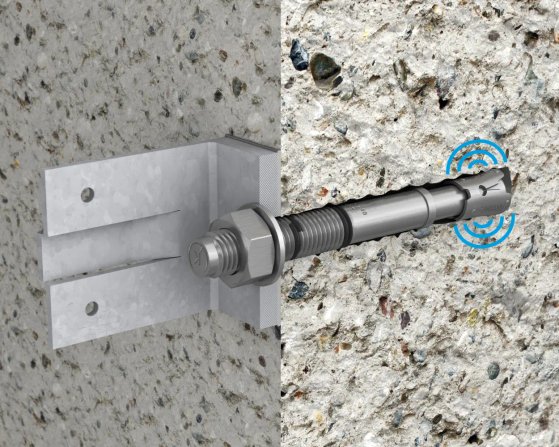

- Simple through-installation (drilling and installation through fixed material)
- High performance in non-cracked concrete confirmed by ETA Option 7
- Suitable for reduced embedment to avoid contact with reinforcement
Product video
Rawlplug R-XPT Throughbolt Mechanical Anchor
Substrates
Approved surfaces
Applications
Substitutes
Services
Design Consulting
Training at the Rawlplug Academy center
Rawlplug Academy
Technical Support 2
Installation guide
Installation manual
Installation step by step
1
Drill a hole to the required diameter and depth for rebar size being used.
2
Blow out the dust at least 4 times with the hand pump.
3
Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.
4
Tighten to the recommended torque.
5
The anchor is properly fixed in the concrete base.
