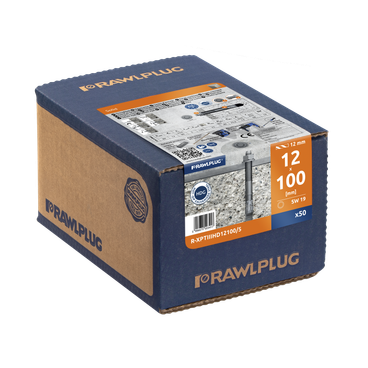

  2. R-XPTHD Throughbolt M12 x 100mm, Hot-Dipped Galv - cardboard box - 50 pcs.

Solid walls
New

R-XPTIIIHD12100/5

5906675503417

Hot Dip Galvanized throughbolt for non-cracked concrete

Download model Perform the calculations

Define product parameters:

Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.4.84 kg

  • Bulk pack

    50.00 pcs.4.84 kg

  • Pallet

    19600.00 pcs.942.37 kg

Features

Hot Dip Galvanized throughbolt for non-cracked concrete

  • Variable anchoring depth provides the flexibility to choose the embedment depth according to your needs.
  • Expansion band made of A4 stainless steel.
  • Design of R-XPTIII allows drilling and installing directly through the fixture and helps to reduce installation time.
  • Increased corrosion resistance due to hot dip zinc protection layer with a thickness of 50 µm.
  • High quality with cost effectiveness.
  • Quick and comfortable assembly using an SDS punch.
  • The new shape of the expansion band with an innovative ring at the end of the band ensures a perfect connection between the anchor and the ground.
  • Application specification in accordance with EAD 330232-02-0601 and included in ETA-23/0887.
  • Possibility of using the anchor in outdoor conditions in accordance with EN ISO 9224.

Kotwa_opaskowa_RXPTIII_Rawlplug_montaz_krok_po_kroku

RXPTIII_throughbolt_from_Rawlplug_installation

Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Barriers

Roads and bridges

Seats in public facilities

Steel structures

Temporary fixings

Poles and road signs

Diameter
Length
Coating
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-HPTIIZF Throughbolt M12 x 100mm, Zinc Flake - cardboard box - 50 pcs.

R-HPTIIZF Throughbolt M12 x 100mm, Zinc Flake - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill the hole to the appropriate depth

2

Remove the drill bits and clean the hole thoroughly using a pump

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached

4

Insert the anchor into the hole through the fastening element and tap it with a hammer to the appropriate depth

5

Tighten to the recommended torque

6

The anchor is correctly installed

Installation data

Technical library

(3)

Technical assessments(1)

ETA-23/0887 (2026-06-08)

Download
Declarations(1)

DoP-23/0887-R-XPTIII-ZP - ETA-23/0887 (2026-06-08)

Download
Certificates(1)

1488-CPR-1098/W - ETA-23/0887 (2026-06-08)

Download

Catalogues and product cards

(7)

Product cards(3)

Product card

Download

Product card

Download

Product card

Download
Catalogues(4)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27

Download

Leaflet R-XPTIII

Download
