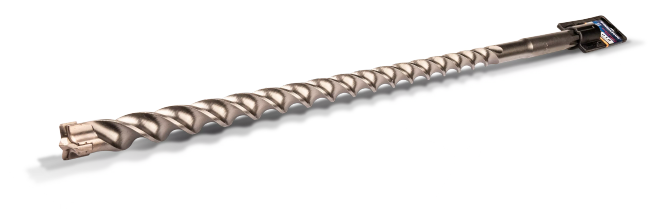

Rebardrill SDS Max drill bit 14x200x340 mm - plastic hanger - 1 pc.

Rebardrill SDS Max drill bit 14x200x340 mm - plastic hanger - 1 pc.

Solid walls

RT-MAXR-14/340

5906675416786

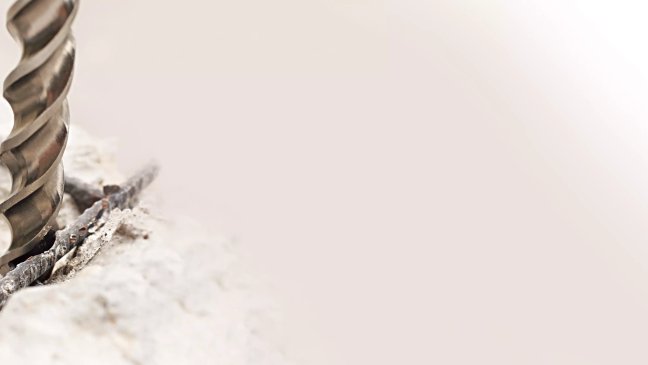

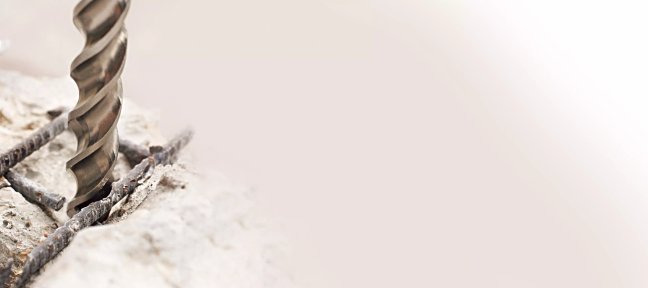

SDS max drill with 3 symmetrically arranged cutting edges allow, for drilling holes in reinforced concrete, concrete, stone and hard brick

Ask for the product

Contact with us and check out our terms of cooperation

Related products

SDS max Combi Hammer Drill 1350 W, 13 J, 42 mm - plastic case - 1 pc.

SDS max Rotary hammer 1350W 13J 42 mm RAWLCASE

SDS max Combi Hammer Drill 1350 W, 13 J, 42 mm - plastic case - 1 pc.

SDS max Rotary hammer 1350W 13J 42 mm RAWLCASE

Features

SDS max drill with 3 symmetrically arranged cutting edges allow, for drilling holes in reinforced concrete, concrete, stone and hard brick

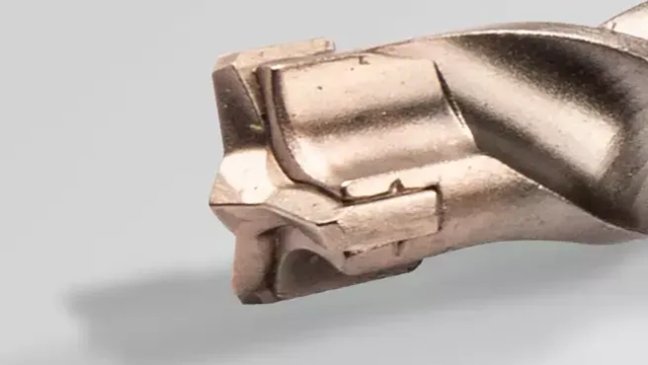

3 symmetrically arranged cutting edges allow for perfectly straight and axial drilling
Angle tip 135° allows drilling in reinforced concrete

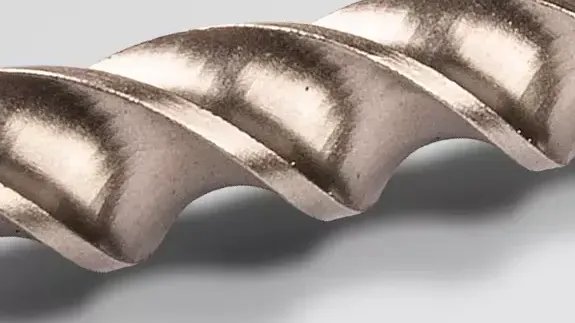

3 material extraction surfaces and special shape of the drill facilitate the removal of dust

Extremely high quality, cylindricity and axial alignment of drilled holes, confirmed by international SicherSafe certificate
Very deep seating of carbide plate significantly improves connection with the drill core, which affects quality
Steel with specification 34CrNiMo6 provides high strength and durability

Centre point for quick commencement of drilling without the drill slipping
Monolithic carbide tip increases the life of the drill bit
Heat treated, which increases the hardness of the steel to 52 HRC for optimal resistance during operation

Substrates

High-density natural stone

High-density natural stone

Concrete

Concrete

Reinforced concrete

Reinforced concrete

Solid brick

Solid brick

Approved surfaces

Applications

Anchoring glued in with reinforcing bars

Concrete structures

Drilling

Masonry structures

Anchoring glued in with threaded rods
