  2. Turbodrill SDS Max drill bit 25x400x540 mm - plastic hanger - 1 pc.

Turbodrill SDS Max drill bit 25x400x540 mm - plastic hanger - 1 pc.

Solid walls

RT-MAXT-25/540

5906675416441

Rawlplug

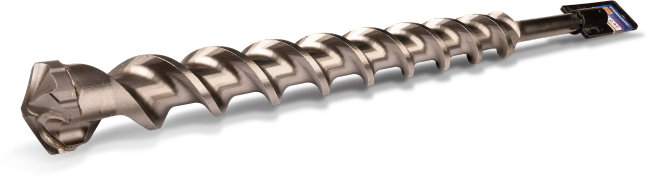

SDS max drill for drilling deep holes in reinforced concrete, concrete, stone and hard brick

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    1.00 pcs.1.02 kg

  • Bulk pack

    20.00 pcs.20.97 kg

  • Pallet

    480.00 pcs.503.35 kg

Related products

R-KEX-II Pure Epoxy Chemical Resin - Plastic Cartridge - 600ml

High-quality bonded anchor based on epoxy resin, approved for cracked concrete, as well as reinforced and unreinforced concrete

R-KEX-II Pure Epoxy Chemical Resin - Plastic Cartridge - 600ml

High-quality bonded anchor based on epoxy resin, approved for cracked concrete, as well as reinforced and unreinforced concrete

Features

SDS max drill for drilling deep holes in reinforced concrete, concrete, stone and hard brick

  • Optimized drill bit geometry allows making axial and cylindrical holes, perfect for mounting.
  • The special shape of the carbide tip and the deep groove of the core of the drill enable very fast drilling of large diameters up to 30 cm deep into the concrete in 1 minute.

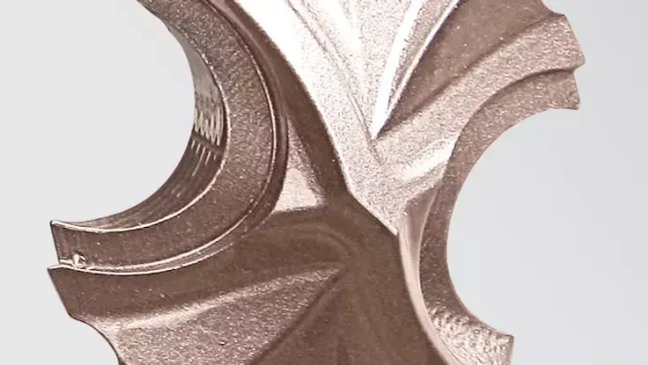

  • Monolithic, one-piece carbide tip with 10 cutting edges, including 6 front and 4 side edges.
  • Extremely high quality, cylindricity and axial alignment of drilled holes, confirmed by international SicherSafe certificate.
  • The drill bit core is subjected to special heat treatment, which increases its flexibility, resistance to twisting and prevents breaking.

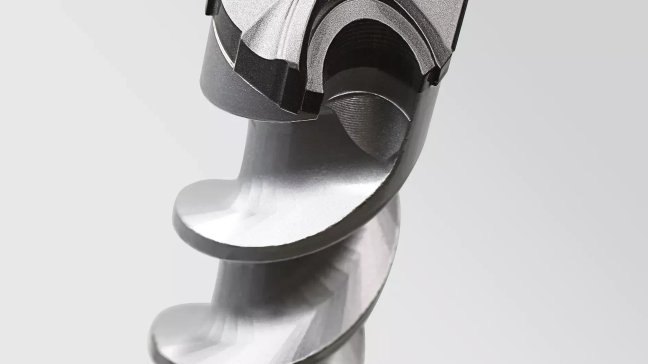

  • Very deep seating of carbide plate significantly improves connection with the drill core, which affects quality.

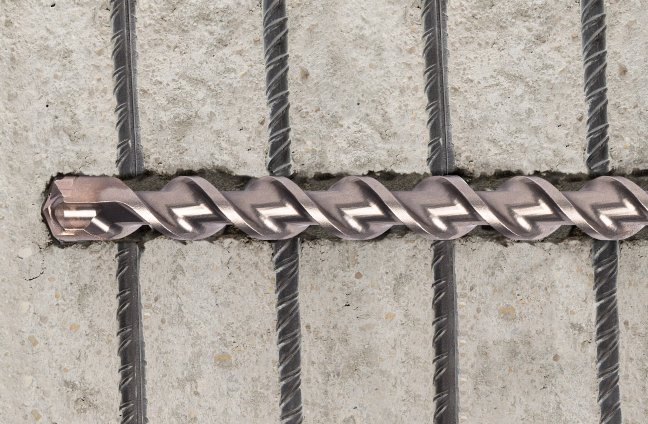

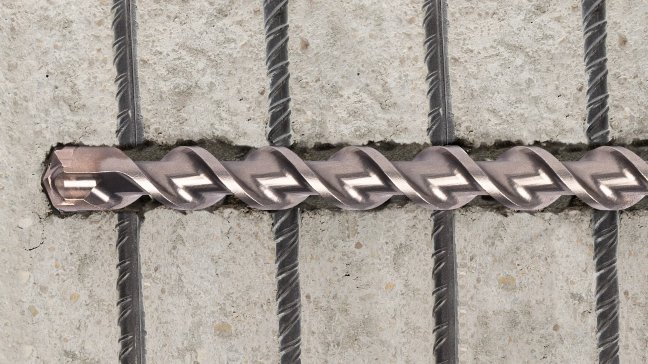

  • Monolithic, one-piece carbide tip with 10 cutting edges, including 6 front and 4 side edges, enabling easy and fast drilling in reinforced concrete without damaging.
  • Steel with specification 34CrNiMo6 provides high strength and durability.
  • Monolithic carbide tip increases the life of the drill bit.
  • Heat treated, which increases the hardness of the steel to 52 HRC for optimal resistance during operation.

Substrates

Concrete

Concrete

Reinforced concrete

Reinforced concrete

High-density natural stone

High-density natural stone

Solid brick

Solid brick

Approved surfaces

Applications

Anchoring glued in with reinforcing bars

Concrete structures

Drilling

Masonry structures

Anchoring glued in with threaded rods
