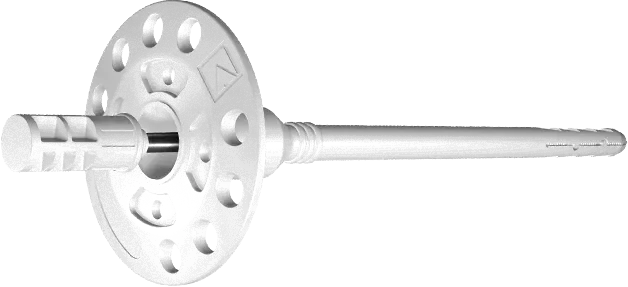

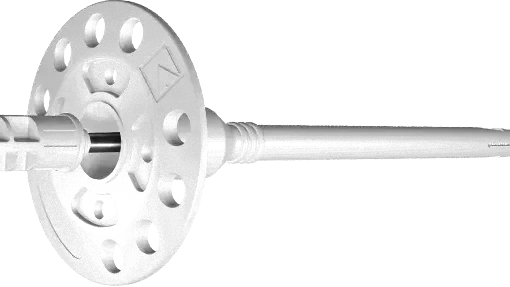

Hammer-in facade fixing with metal pin TFIX-8M 115 mm - cardboard box - 200 pcs.

Universal
Outlet

TFIX-8M-115

5906675188775

Rawlplug

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    200.00 pcs.5.11 kg

  • Bulk pack

    200.00 pcs.5.11 kg

  • Pallet

    8000.00 pcs.204.20 kg

Features

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

  • Quick and easy application.
  • Excellent plate stiffness (value 1.0 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The long plastic overmoulding on the TFIX-8M nail minimises thermal bridging (value 0.002W/K), contributing to energy-saving benefits.
  • Unique nail design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.
  • Pre-assembled screw saves time and labour.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).

Substrates

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Approved surfaces

Applications

Facades - thermal insulation systems

Ventilated facades

Full list of variations

Substitutes

Services

Installation guide

Installation data
Design data
SubstrateA,B,C,D
Fixing diameterd[mm]
8
Hole diameter in substrated0[mm]
8
Min. installation depthhnom[mm]
25
Min. hole depth in substrateh0[mm]
35
Min. substrate thicknesshmin[mm]
100
Min. spacingsmin[mm]
100
Min. edge distancecmin[mm]
100
SubstrateNRkNRdNrec
Concrete C 12/15 – C 50/60 according to EN 206-1[kN]
1,20,60,43
Solid clay bricks according to EN 771-1[kN]
1,20,60,43
Solid sand-lime bricks KS according to EN 771-2[kN]
1,20,60,43
Solid sand-lime bricks KSL according to EN 771-2[kN]
0,90,450,32
Hollowed brique according to EN 771-1[kN]
0,60,30,21
Lightweight concrete solid blocks Vbl according to EN 771-3[kN]
0,30,30,21
Lightweight concrete hollow blocks Hbl according to EN 771-2[kN]
0,50,250,18
Lightweight concrete solid blocks V according to EN 771-2[kN]
0,50,250,18
Fixing typeTFIX-8M
Plate resistance-[kN]
1,75
Plate stiffness-[kN/mm]
1
Point thermal transmittance χ[W/K]
0,002

Approvals and publications

Technical library

(6)

Technical assessments(1)

UKTA-22/6337 (2022-11-09)

Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Declarations(1)

UKTA-DoP-22/6337-TFIX-8M (2023-10-02)

Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Certificates(2)

1488-CPR-0244/Z

Certificate of Conformity of the Factory Production Control

EPD-01-07/2026 (2026-07-27) - Hammer-in facade fixings

Hammer-in facade fixings

Documents(2)

ETA-07/0336 (2025-08-13)

European Technical Assessment

DoP-07/0336-TFIX-8M (ETA-07/0336)

Declaration of Performance

Catalogues and product cards

(5)

Product cards(2)

Product cart

Product card

Catalogues(3)

Catalogue Offer (overview) - EN

Specification Design Guide

General Catalogue EN 2026/27
