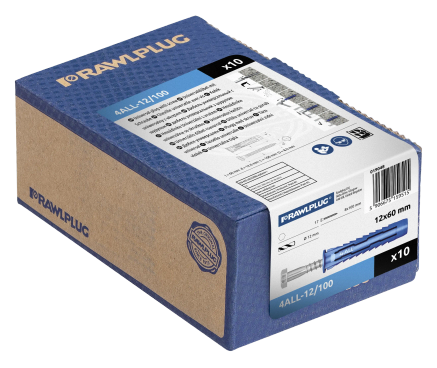

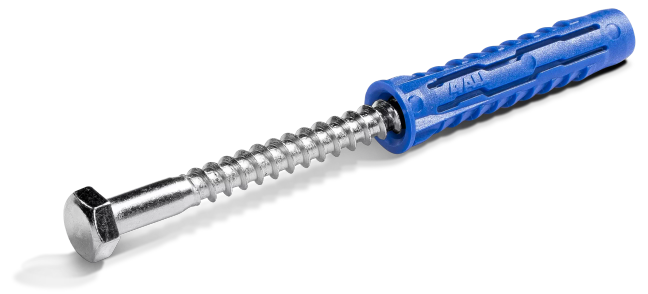

  2. 4ALL Universal plug 12x60 mm with hex head screw 8.0x100 mm - cardboard box - 10 pcs.

4ALL Universal plug 12x60 mm with hex head screw 8.0x100 mm - cardboard box - 10 pcs.

Universal

4ALL-12/100

5906675159515

High performance nylon plug for all types of substrates

Define product parameters:

Diameter
Length
Screw length
Screw diameter
Packaging and quantity

Related products

Features

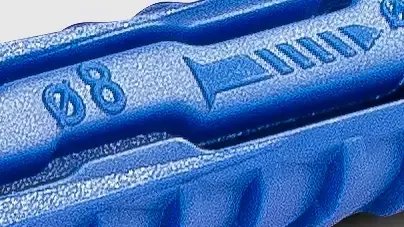

High performance nylon plug for all types of substrates

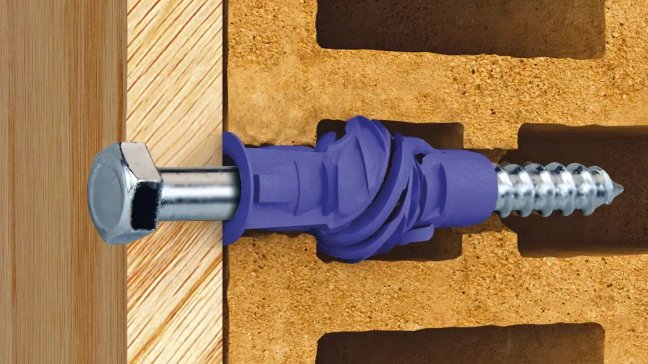

  • Expanding section designed to collapse in hollow materials and provide positive grip behind surfaces.
  • Solid head design provides strength whilst plug is installed.
  • Anti-rotational lugs promote grip in wide range of substrates including soft masonry materials.
  • Unique internal design provides positive grip for screws
  • Unique 4 way expansion allowing application in any substrate material and type.
  • Rib detail at plug head provides added grip.

Product video

4ALL - installation (Polish version)

4ALL - promotional video (Polish version)

Rawlplug 4ALL High Performance Nylon Plug for All Substrates

Substrates

Concrete C20/25-C50/60

Concrete C20/25-C50/60

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Hollow brick

Hollow brick

Vertically-perforated clay block

Vertically-perforated clay block

Aerated concrete

Aerated concrete

Plasterboard

Plasterboard

Hollow lightweight concrete block

Hollow lightweight concrete block

Approved surfaces

Applications

Bathroom accessories

Cabinets, brackets and wall brackets

Electrical Installations

Letterboxes

Lighting

TV brackets

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Customized packaging

Customized packaging

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter.

2

Insert 4ALL plug into the hole and tap home.

3

Maintaining constant pressure, tighten the fastener flush with the base material.

4

4ALL - Installed product.

5

4ALL - Installed product.

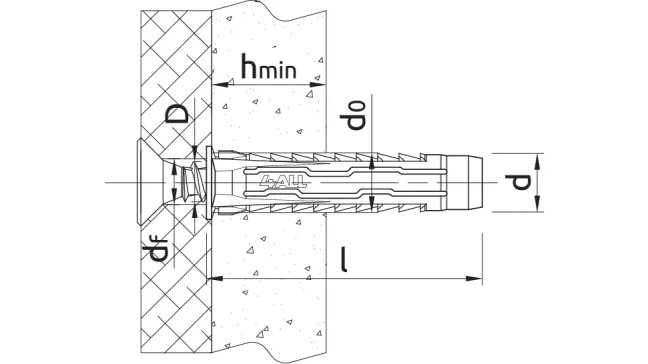

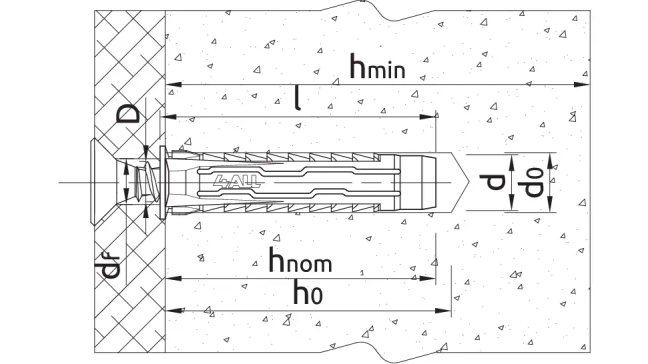

Installation data

Approvals and publications

Technical library and approvals

Choose document:

KOT-2022/2086

020_UWB-1091/Z

KDWU-2022-2086-4ALL

SDS_4ALL_SA_07_04_2015

Product card and catalogues
