ISO-PLUG Spiralplug for Styrofoam 50 mm - blister - 4 pcs.
Universal
B-ISO50
5906675028675
Spiral fixing for EPS
Define product parameters:
Length
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features
Spiral fixing for EPS
- The geometry of the ISO-PLUG allows for a simple installation in thin layers of plaster, without the need for pre-drilling, thus saving a stage of installation
- Proper shape of TX/HEX socket provides stabilization during the process of driving in by providing necessary grip for the bit
- Ribs on the internal surface of plate provide locking in surface during driving screws in and out and even surface of plug with substrate after fixing
- Unique construction of screw thread section provides support for wide variety of diameters, without limitation of screws’ length.
- No thermal bridging
- Can be installed with commercial drill/drive tool.
- Fixtures are fixed with a wide range of screws, diameter 4-5mm and length from 40mm
- Surface of the plate allows hiding installation hole and perfectly matches the surface of plaster layer, not deformating it
- Unique self-drilling point allow precise installation through any type of façade plaster, preventing from breaking its surface
Substrates
Approved surfaces
Applications
Substitutes
Services
Installation guide
Installation manual
Installation step by step
1
Drive ISO-PLUG into the insulation material (manually, or with an electric screwdriver) until installation depth reached.
2
Fixtures are fixed with a proper screw diameter. R-ISO-PLUG-50 with diameter of the screw between 4-5mm and R-ISO-PLUG-80 with screw diameter 6-7mm.
3
Insert screw of required diameter into plug through fixture and tighten.
4

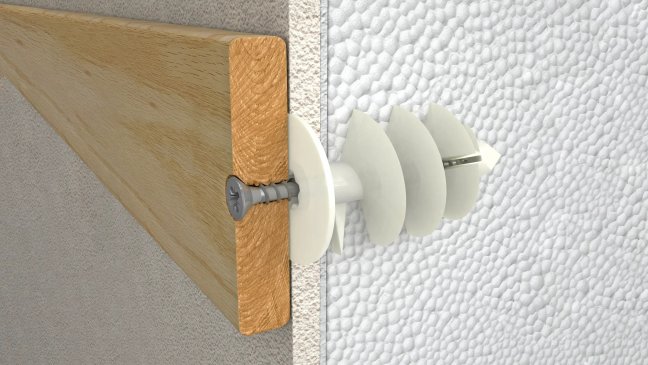

Correctly installed ISO-PLUG with screw.
