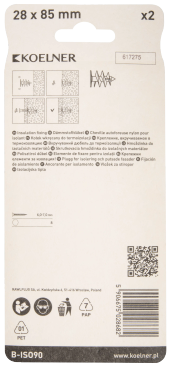

  2. ISO-PLUG Spiralplug for Styrofoam 80 mm - blister - 2 pcs.

Universal

B-ISO90

5906675028682

Koelner

Spiral fixing for EPS

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    6.00 bl0.25 kg

  • Bulk pack

    6.00 bl0.25 kg

  • Pallet

    936.00 bl38.69 kg

Related products

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Torsion Hex8 bits 25 mm - plastic box - 20 pcs.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Torsion Hex8 bits 25 mm - plastic box - 20 pcs.

Features

Spiral fixing for EPS

  • The geometry of the ISO-PLUG allows for a simple installation in thin layers of plaster, without the need for pre-drilling, thus saving a stage of installation.
  • Proper shape of TX/HEX socket provides stabilization during the process of driving in by providing necessary grip for the bit.
  • Ribs on the internal surface of plate provide locking in surface during driving screws in and out and even surface of plug with substrate after fixing.
  • Unique construction of screw thread section provides support for wide variety of diameters, without limitation of screws’ length.
  • No loss of thermal transmittance at the anchoring point.
  • Can be installed with commercial drill/drive tool.
  • Fixtures are fixed with a wide range of screws, diameter 4.5 mm and length from 40 mm.
  • Surface of the plate allows hiding installation hole and perfectly matches the surface of plaster layer, not deformating it.
  • Unique self-drilling point allow precise installation through any type of façade plaster, preventing from breaking its surface.

Mineral wool boards

Mineral wool boards

Polystyrene (EPS) boards

Polystyrene (EPS) boards

Approved surfaces

Air conditioning / ventilation

Electrical Installations

Ventilated facades

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for bl. net

R-FF1 Nylon Frame Fixing 8 x 80mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

R-KEM-II Polyester Resin Styrene Chemical Resin - plastic cartouche - 300 ml

R-PLS Plastic Mesh Sleeves, 16 x 130mm, PP - plastic bag - 10 pcs.

R-STUDS Threaded Rod M8 x 160mm, Hex Head, Class 5.8 - cardboard box - 10 pcs.

R-FF1 Nylon Frame Fixing 8 x 80mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

R-KEM-II Polyester Resin Styrene Chemical Resin - plastic cartouche - 300 ml

R-PLS Plastic Mesh Sleeves, 16 x 130mm, PP - plastic bag - 10 pcs.

R-STUDS Threaded Rod M8 x 160mm, Hex Head, Class 5.8 - cardboard box - 10 pcs.

Installation manual

Installation step by step

1

Drive ISO-PLUG into the insulation material (manually, or with an electric screwdriver) until installation depth reached.

2

Fixtures are fixed with a proper screw diameter. R-ISO-PLUG-50 with diameter of the screw between 4-5mm and R-ISO-PLUG-80 with screw diameter 6-7mm.

3

Insert screw of required diameter into plug through fixture and tighten.

4

Correctly installed ISO-PLUG with screw.
