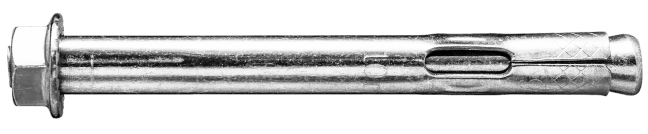

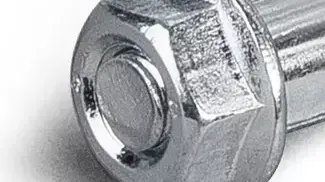

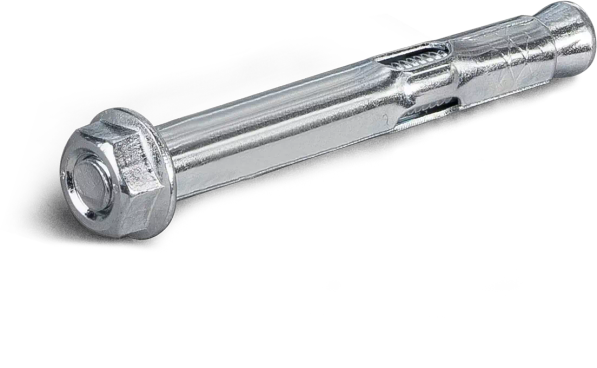

  2. Sleeve anchors KT 8x65 mm - blister - 4 pcs.

Solid walls

B-KT08065

5906675030906

Koelner

Universal anchor for medium loads in non-cracked concrete

Define product parameters:

Metric diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    8.00 bl0.79 kg

  • Bulk pack

    8.00 bl0.79 kg

  • Pallet

    1872.00 bl184.63 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

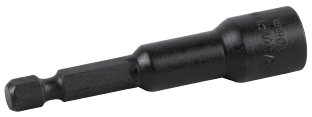

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x50x110 mm - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x50x110 mm - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Universal anchor for medium loads in non-cracked concrete

  • Suitable for temporary fixings.
  • Low weight mechanical sleeve anchor.
  • Product approved AT option 7.

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Reinforced concrete

Reinforced concrete

Unreinforced concrete

Unreinforced concrete

Approved surfaces

Doors and windows

Radiators

Satellite dishes

Poles and road signs

Metric diameter
Length
Packaging and quantity
Index
EAN
Catalog price for bl. net

KT Sleeve Anchors 8 x 65mm - cardboard box - 100 pcs.

KT Sleeve Anchors 8 x 65mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Place the drill bit in the hole.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Tighten to the recommended torque.

5

The anchor is correctly fixed.
