KES-90/20-MW
5906675471563

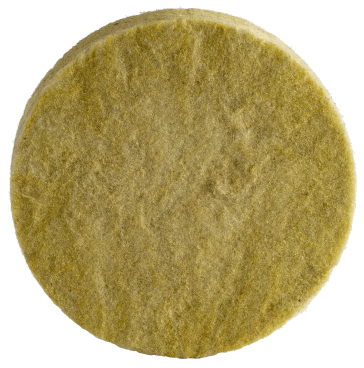

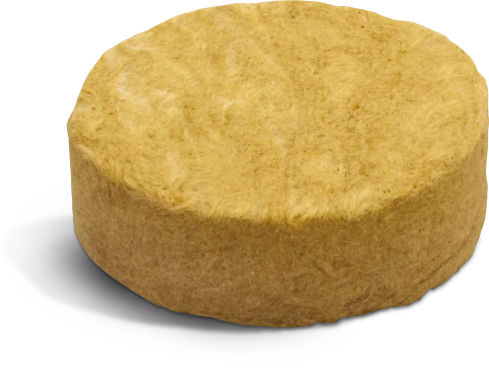

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface
Define product parameters:
Unit pack
500.00 pcs.7.95 kg
Bulk pack
500.00 pcs.7.95 kg
Pallet
4000.00 pcs.63.60 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface
Approved surfaces
Material | Diameter | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|

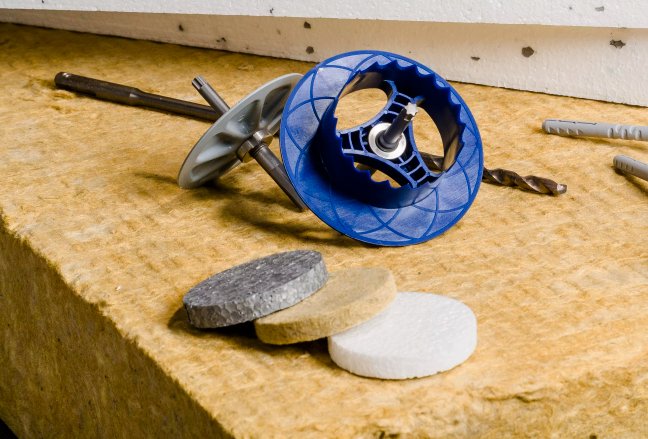

Cut a hole in the mineral wool using the KFS cutter.
Drill a hole of appropriate diameter and depth.
Hammer the steel nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 25 mm in base materials category A, B, C (concrete, solid and perforated bricks), 40 mm in base materials category D (lightweight concrete blocks) and 60 mm in aerated concrete.

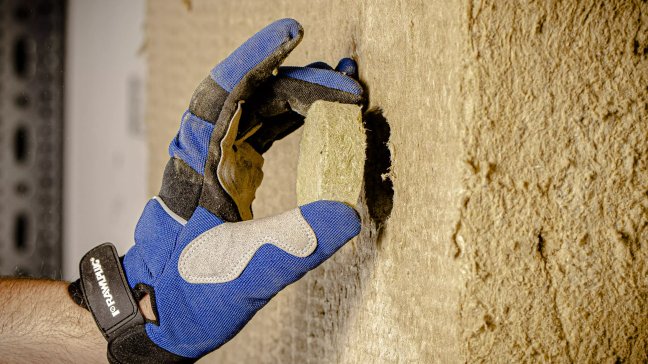

Insert cap into countersunk hole in insulation board following installation of the facade fixing.
Proper recessed installation.
Cut the hole in insulation board.
Drill a hole of appropriate diameter and depth.
Hammer the steel nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 25 mm in base materials category A, B, C (concrete, solid and perforated bricks), 40 mm in base materials category D (lightweight concrete blocks) and 60 mm in aerated concrete.
Insert cap into countersunk hole in insulation board following installation of the facade fixing.
Proper recessed installation.
