KI-140NS
5906675216140

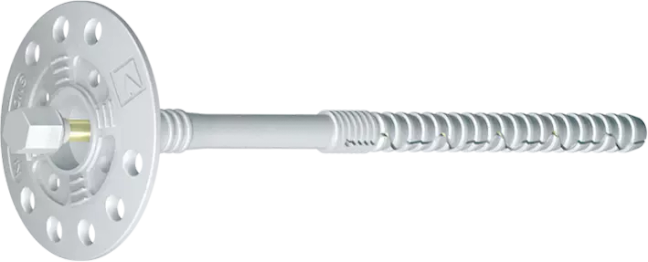

Screw-in facade fixing with long expansion zone 60 mm for high performance in all base materials
Define product parameters:
Unit pack
250.00 pcs.8.09 kg
Bulk pack
250.00 pcs.8.09 kg
Pallet
8000.00 pcs.259.01 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Screw-in facade fixing with long expansion zone 60 mm for high performance in all base materials
Approved surfaces
Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Drill hole to the required diameter and depth for stud size being used. Drilling depth of min 60 mm in concrete and 80 mm in other approved materials.
Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.
Tighten screw until fixing is secure and flush with insulation material. Embedment depth of min 40 mm in concrete and 60 mm in other approved materials.
In soft insulation panels the fixing should be combined with insulation retaining plates KWL 90, 110, 140 mm.
