  2. KI-10NS Screw in insulation fixing with long expansion zone 10x300 mm - cardboard box - 250 pcs.

Universal

KI-300NS

5906675216645

Koelner

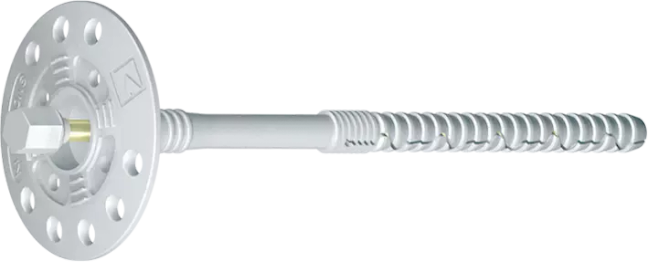

Screw-in facade fixing with long expansion zone 60 mm for high performance in all base materials

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    200.00 pcs.12.27 kg

  • Bulk pack

    200.00 pcs.12.27 kg

  • Pallet

    4800.00 pcs.294.58 kg

This product has been withdrawn from sale.

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Dead blow hammer 0,6 kg - label - 1 pc.

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Dead blow hammer 0,6 kg - label - 1 pc.

Features

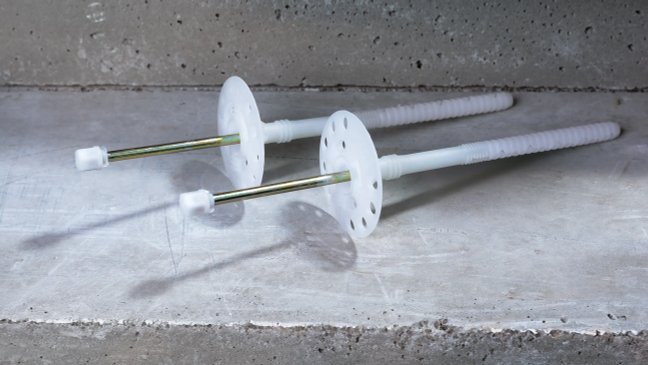

Screw-in facade fixing with long expansion zone 60 mm for high performance in all base materials

  • Quick and easy installation in all substrates.
  • Approved for use in all base material categories A,B,C,D,E.
  • Steel nail allows fast and trouble-free installation with correct expansion of the plug.
  • Reduction of thermal bridge formation (value 0.3W/K) through the integration of an impact-resistant plastic overmoulding on the screw head.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Lightweight concrete

Lightweight concrete

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x300 mm - cardboard box - 200 pcs.

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x300 mm - cardboard box - 200 pcs.

Installation manual

Installation step by step

1

Drill hole to the required diameter and depth for stud size being used. Drilling depth of min 60 mm in concrete and 80 mm in other approved materials.

2

Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.

3

Tighten screw until fixing is secure and flush with insulation material. Embedment depth of min 40 mm in concrete and 60 mm in other approved materials.

4

In soft insulation panels the fixing should be combined with insulation retaining plates KWL 90, 110, 140 mm.

Installation data
