Steel
OCW-48019T7000
2074801970006
Define product parameters:
Length
Washer
Color RAL
Packaging and quantity
This product has been withdrawn from sale.
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation

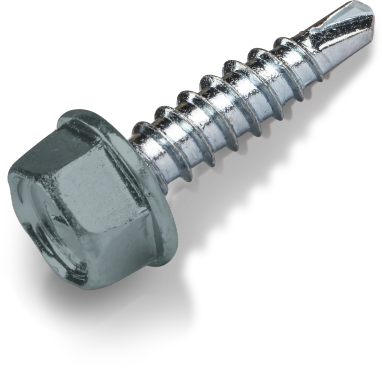

Features
Reduced drilling point guarantees optimum tightness of the fastening
- Screws available with a coloured polyester coating (RAL) provide additional corrosion protection and ensure aesthetic matching with roofing or façade cladding. UV stabilisers guarantee long-term colour durability and resistance to fading throughout the service life.
- The case-hardened thread ensures high cutting performance and secure anchorage in the substrate, while maintaining a ductile core. This increases resistance to dynamic loads and reduces the risk of screw fracture.
- The reduced drill point enables fast drilling start and precise screw guidance, minimizing the risk of slipping on the sheet surface and damage to the protective coating.
- The thread extended up to the head prevents screw overdriving and ensures strong clamping of the connected elements. It allows installation without a sealing washer in applications where watertightness is not required.
- The self-vulcanizing EPDM sealing washer is resistant to UV radiation, ageing, and temperature fluctuations. It guarantees long-term watertightness and protects the joint against water ingress.
Approved surfaces
Length | Washer | Color RAL | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Installation manual
Installation step by step
1
Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.
2
Screw properly tightened.
Installation data
Technical library
(8)
Technical assessments(3)
Documents(1)
Catalogues and product cards
(2)
