  2. OCW Self-drilling screws 4.8x19 mm with washer T14 RAL 7011 - cardboard box - 250 pcs.

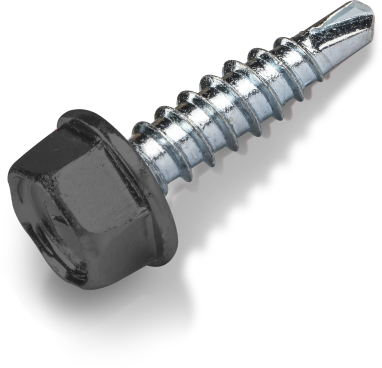

OCW Self-drilling screws 4.8x19 mm with washer T14 RAL 7011 - cardboard box - 250 pcs.

Steel
Outlet

OCW-48019T7011

5906675265056

Koelner

Reduced drilling point guarantees optimum tightness of the fastening

Define product parameters:

Length
Washer
Color RAL
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    250.00 pcs.

  • Bulk pack

    4000.00 pcs.

  • Pallet

    96000.00 pcs.

Related products

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Features

Reduced drilling point guarantees optimum tightness of the fastening

  • Hardened surface of the thread (flexible core). Corrosion resistant zinc coating has a thickness of no less than 12um.
  • Coloured polyester protective coating with a thickness of 45-50um (RAL,NCS RR) provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • Reduced drill bit (with a diameter smaller than the thread) prevents the holes in thin metal sheets from being recalibrated.
  • The full length thread design prevents twisting and allows application without a washer. Furthermore the specific shape and type of thread allow metal sheets to be connected together.
  • The special shape of the drill bit designed to ensure fast and trouble-free installation of profiled sheets between each other. The sharp end of the drill prevents movement on the surface of the fastened part.

Substrates

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Pitched roofs

Ventilated facades

Drilling and screwing

Substitutes

OC Self-drilling screws 4.8x19 mm without washer - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

OC Self-drilling screws 4.8x19 mm with washer T14 - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point whit washer T14 - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

OC Self-drilling screws 4.8x19 mm without washer - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

OC Self-drilling screws 4.8x19 mm with washer T14 - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point whit washer T14 - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0203

1488-CPR-0530/Z

DOP-13/0203-OCW

KOT-0159/2018

020-UWB-0850/Z

KDWU-2018/0159-2

UKTA-22/6370

UKTA-DoP-22/6370-OCW
