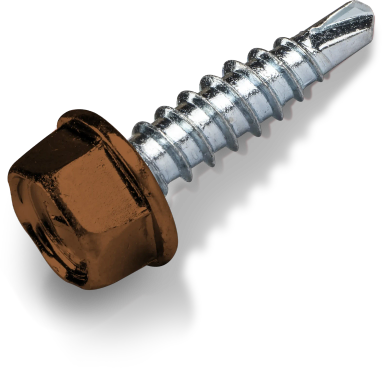

  2. OCW Self-drilling screws 4.8x19 mm with washer T14 RAL 8003 - cardboard box - 250 pcs.

OCW Self-drilling screws 4.8x19 mm with washer T14 RAL 8003 - cardboard box - 250 pcs.

Steel

OCW-48019T8003

5906675377926

Koelner

Reduced drilling point guarantees optimum tightness of the fastening

Define product parameters:

Length
Washer
Color RAL
Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 120 days

Related products

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Features

Reduced drilling point guarantees optimum tightness of the fastening

  • Hardened surface of the thread (flexible core). Corrosion resistant zinc coating has a thickness of no less than 12um.
  • Coloured polyester protective coating with a thickness of 45-50 um (RAL, NCS, RR), provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • Reduced drilling point ensures optimal tightness and correct hole diameter in thin metal sheets.
  • The full length thread design prevents twisting and allows application without a washer. Furthermore the specific shape and type of thread allow metal sheets to be connected together.
  • The drill point is designed to provide a fast and hassle-free installation in wood. Sharp point of the drill prevents movement of the surface of the fixture.

Substrates

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Pitched roofs

Ventilated facades

Drilling and screwing

Substitutes

OC Self-drilling screws 4.8x19 mm without washer - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

OC Self-drilling screws 4.8x19 mm with washer T14 - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point whit washer T14 - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

OC Self-drilling screws 4.8x19 mm without washer - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

OC Self-drilling screws 4.8x19 mm with washer T14 - cardboard box - 250 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

R-OCW Self-drilling screw 4.8x19 mm with reduced drilling point whit washer T14 - cardboard box - 250 pcs.

Reduced drilling point guarantees optimum tightness of the fastening

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Za pomocą nasadki magnetycznej dokręcić wkręt z podkładką przy użyciu wkrętarki z regulowanym momentem obrotowym.

2

Prawidłowo zamocowany wkręt.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0203

1488-CPR-0530/Z

DOP-13/0203-OCW

KOT-0159/2018

020-UWB-0850/Z

KDWU-2018/0159-2

UKTA-22/6370

UKTA-DoP-22/6370-OCW

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Catalogue
