  2. OD Self-drilling farmer screws for timber 4.8x35 mm with washer T14 RAL 9999 - cardboard box - 250 pcs.

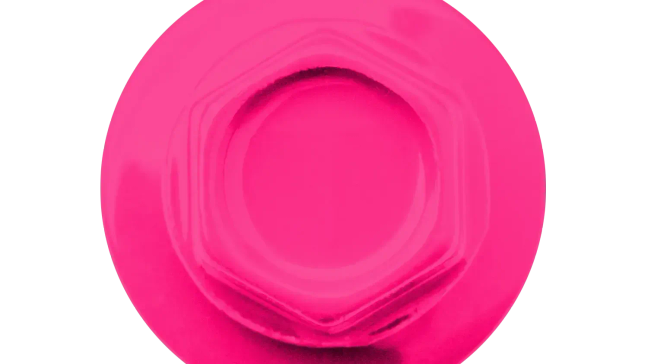

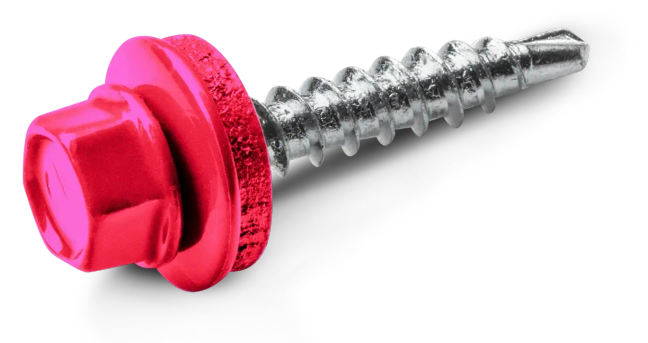

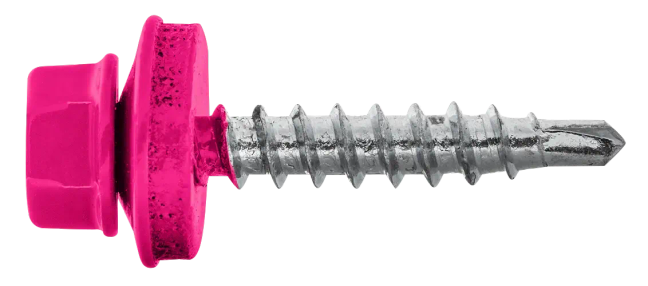

OD Self-drilling farmer screws for timber 4.8x35 mm with washer T14 RAL 9999 - cardboard box - 250 pcs.

Timber

OD-48035T9999

2024803599996

Koelner

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

Define product parameters:

Length
Color RAL
Washer
Packaging and quantity

Related products

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Features

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

  • Coloured polyester protective coating with a thickness of 45-50 um (RAL, NCS, RR), provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • Hardened surface of the thread (flexible core). Shape and type of thread designed specifically for use in wood construction.
  • The special shape of the drill bit designed to ensure fast and trouble-free installation in wood. The sharp end of the drill prevents the drill bit from moving across the surface of the workpiece to be fastened.
  • Reduced drilling point ensures optimal tightness and correct hole diameter in the wood.

Substrates

Timber

Timber

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Drilling and screwing

Substitutes

OD Self drilling farmer screw for timber 4,8x35mm - blister - 20 pcs.

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

OD Self drilling farmer screw for timber 4,8x35mm with washer T14 - blister - 20 pcs.

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

OD Self drilling farmer screw for timber 4,8x35mm - blister - 20 pcs.

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

OD Self drilling farmer screw for timber 4,8x35mm with washer T14 - blister - 20 pcs.

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Za pomocą nasadki magnetycznej dokręcić wkręt z podkładką przy użyciu wkrętarki z regulowanym momentem obrotowym.

2

Prawidłowo zamocowany wkręt.

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0203

1488-CPR-0530/Z

DoP-13-0203-OD

KOT-0159/2018

020-UWB-0850/Z

KDWU-2018/0159-2

UKTA-22/6370

UKTA-DoP-22/6370-OD
