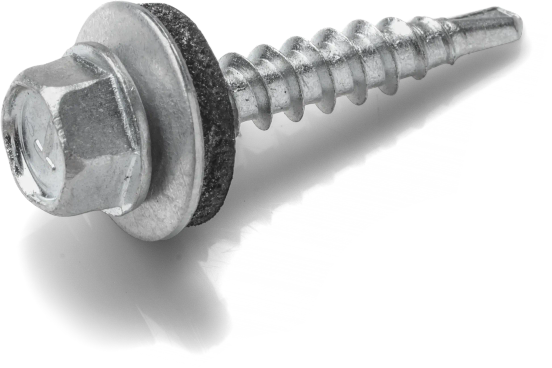

  2. ODK Self-drilling farmer screws for timber 4.8x35 mm with washer T14 RAL 3009 - cardboard box - 4 kg

Timber

ODK-48035T3009

5906675375304

Koelner

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

Define product parameters:

Length
Washer
Color RAL
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    4.00 kg4.08 kg

  • Bulk pack

    4.00 kg4.08 kg

Related products

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, without batteries and RawlCHARGER - cardboard box - 1 pc.

Features

Special design of the sharp point guaranteeing quick and firm installation in wood substrate

  • Screws available with a coloured polyester coating (RAL) provide additional corrosion protection and ensure aesthetic matching with roofing or façade cladding. UV stabilisers guarantee long-term colour durability and resistance to fading throughout the service life.
  • Hardened surface of the thread (flexible core). Shape and type of thread designed specifically for use in wood construction.

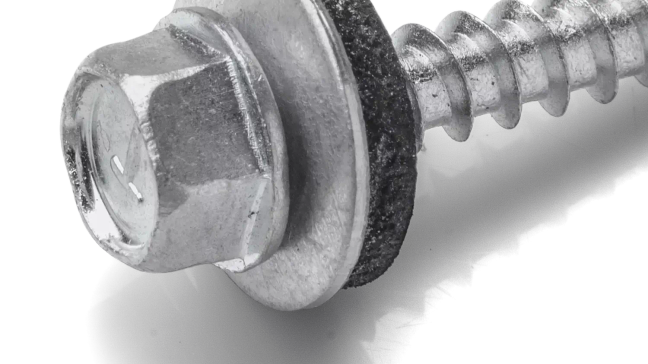

  • The self-vulcanizing EPDM sealing washer is resistant to UV radiation, ageing, and temperature fluctuations. It guarantees long-term watertightness and protects the joint against water ingress.
  • The special shape of the drill bit designed to ensure fast and trouble-free installation in wood. The sharp end of the drill prevents the drill bit from moving across the surface of the workpiece to be fastened.
  • Reduced drilling point ensures optimal tightness and correct hole diameter in the wood.

Timber

Timber

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Drilling and screwing

Length
Washer
Color RAL
Packaging and quantity
Index
EAN
Catalog price for kg. net

ODK Self-drilling farmer screws for timber 4.8x35 mm with washer T14 - cardboard box - 4 kg

ODK Self-drilling farmer screws for timber 4.8x35 mm with washer T14 - cardboard box - 4 kg

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

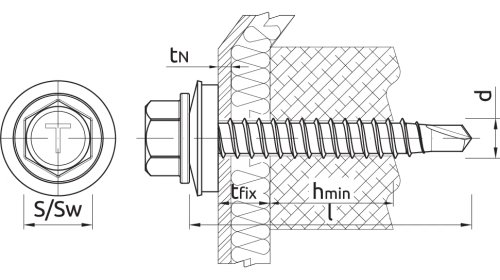

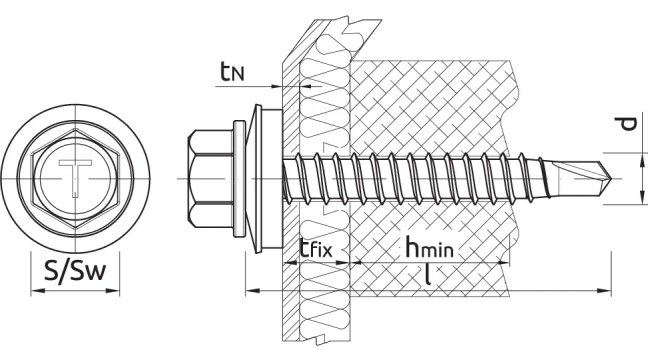

Installation data

Technical library

(3)

Technical assessments(1)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Download
Declarations(1)

DoP-24/0237 OD (ETA-24/0237 - Self-drilling screws)

Download
Certificates(1)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
