  2. ODX Self-drilling screws for timber 4.8x35 mm with washer A14 RAL6029 - cardboard box - 250 pcs.

Timber

ODX-48035A6029

5906675384245

Koelner

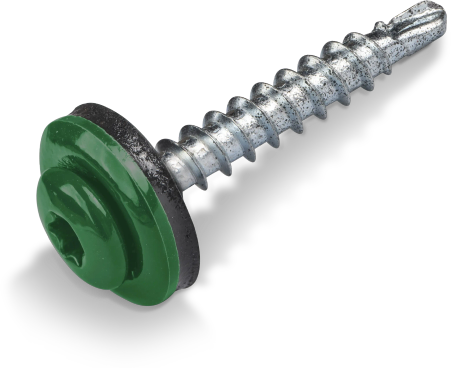

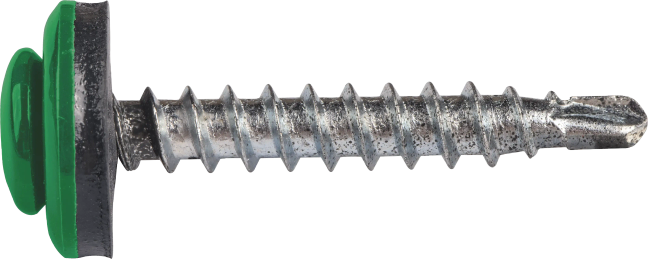

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

Define product parameters:

Color RAL
Washer
Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 21 days

Related products

Torsion Torx T20 25 mm bits - plastic box - 20 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torx T20 bits - blister - 3 pcs.

Torx T20 50mm Bit - plastic bag - 2 pcs.

Torx T20 25mm Bit - plastic bag - 2 pcs.

Torsion Torx T20 25 mm bits - plastic box - 20 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torx T20 bits - blister - 3 pcs.

Torx T20 50mm Bit - plastic bag - 2 pcs.

Torx T20 25mm Bit - plastic bag - 2 pcs.

Features

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

  • Screws available with a coloured polyester coating (RAL) provide additional corrosion protection and ensure aesthetic matching with roofing or façade cladding. UV stabilisers guarantee long-term colour durability and resistance to fading throughout the service life.
  • The case-hardened thread ensures high cutting performance and secure anchorage in the substrate, while maintaining a ductile core. This increases resistance to dynamic loads and reduces the risk of screw fracture.
  • The specially designed thread geometry and pitch enable strong, stable, and durable fastening in timber substrates
  • The thread extended up to the head prevents screw overdriving and ensures strong clamping of the connected elements. It allows installation without a sealing washer in applications where watertightness is not required.
  • The self-vulcanizing EPDM sealing washer is resistant to UV radiation, ageing, and temperature fluctuations. It guarantees long-term watertightness and protects the joint against water ingress.
  • The oval countersunk head ensures an aesthetically pleasing and watertight fastening finish, particularly in sheet metal applications requiring enhanced visual appearance.
  • The TORX 20 drive enables secure bit engagement and ensures fast, efficient installation.

Timber

Timber

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Drilling and screwing

Wooden constructions

Color RAL
Washer
Packaging and quantity
Index
EAN
Catalog price for pack. net

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

Installation data

Technical library

(5)

Technical assessments(2)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Download

UKTA-22/6370

Download
Declarations(2)

DoP-24/0237 ODX (ETA-24/0237 - Self-drilling screws)

Download

UKTA-DoP-22/6370-ODX

Download
Certificates(1)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
