  2. ODX Self-drilling screws for timber 4.8x35 mm with washer A14 RAL9002 - cardboard box - 250 pcs.

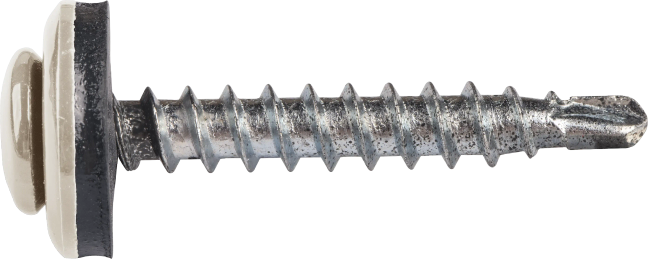

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 RAL9002 - cardboard box - 250 pcs.

Timber

ODX-48035A9002

5906675384313

Koelner

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

Define product parameters:

Color RAL
Washer
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    250.00 pcs.

  • Bulk pack

    3000.00 pcs.

  • Pallet

    72000.00 pcs.

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 120 days

Related products

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

8mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Features

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

  • Coloured polyester protective coating with a thickness of 45-50um (RAL,NCS RR) provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • Hardened surface of the thread (flexible core). Shape and type of thread designed specifically for use in wood construction.
  • The special shape of the drill bit designed to ensure fast and trouble-free installation in wood. The sharp end of the drill prevents the drill bit from moving across the surface of the workpiece to be fastened.
  • Reduced drilling point ensures optimal tightness and correct hole diameter in the wood.

Substrates

Timber

Timber

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Drilling and screwing

Wooden constructions

Full list of variations

Color RAL
Washer
Type of package
Pieces. per pack.
Index
EAN
Catalog price for pack. net

Substitutes

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

Installation guide

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

Installation data

Approvals and publications

Technical library

(8)

Technical assessments(3)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Download

ETA-13/0203

Download

UKTA-22/6370

Download
Declarations(3)

DoP-24/0237 ODX (ETA-24/0237 - Self-drilling screws)

Download

DoP-13/0203-ODX

Download

UKTA-DoP-22/6370-ODX

Download
Certificates(2)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

Download

1488-CPR-0530/Z

Download

Catalogues and product cards

(1)

Product cards(1)

Product cart

Download
