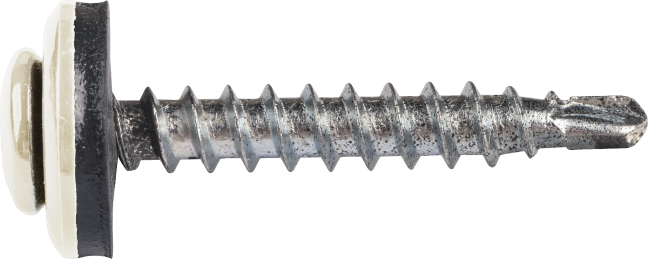

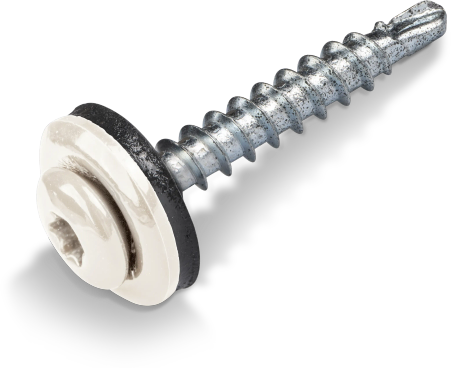

  2. ODX Self-drilling screws for timber 4.8x35 mm with washer A14 RAL9010 - cardboard box - 250 pcs.

Timber

ODX-48035A9010

5906675384344

Koelner

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

Define product parameters:

Color RAL
Washer
Packaging and quantity

Related products

Torsion Torx T20 25 mm bits - plastic box - 20 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torx T20 bits - blister - 3 pcs.

Torx T20 50mm Bit - plastic bag - 2 pcs.

Torx T20 25mm Bit - plastic bag - 2 pcs.

Torsion Torx T20 25 mm bits - plastic box - 20 pcs.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torx T20 bits - blister - 3 pcs.

Torx T20 50mm Bit - plastic bag - 2 pcs.

Torx T20 25mm Bit - plastic bag - 2 pcs.

Features

Special design kind of head type Countersunk Oval with Torx recess to ensure aesthetic looks

  • Screws available with a coloured polyester coating (RAL) provide additional corrosion protection and ensure aesthetic matching with roofing or façade cladding. UV stabilisers guarantee long-term colour durability and resistance to fading throughout the service life.
  • The case-hardened thread ensures high cutting performance and secure anchorage in the substrate, while maintaining a ductile core. This increases resistance to dynamic loads and reduces the risk of screw fracture.
  • The specially designed thread geometry and pitch enable strong, stable, and durable fastening in timber substrates
  • The thread extended up to the head prevents screw overdriving and ensures strong clamping of the connected elements. It allows installation without a sealing washer in applications where watertightness is not required.
  • The self-vulcanizing EPDM sealing washer is resistant to UV radiation, ageing, and temperature fluctuations. It guarantees long-term watertightness and protects the joint against water ingress.
  • The oval countersunk head ensures an aesthetically pleasing and watertight fastening finish, particularly in sheet metal applications requiring enhanced visual appearance.
  • The TORX 20 drive enables secure bit engagement and ensures fast, efficient installation.

Timber

Timber

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Drilling and screwing

Wooden constructions

Color RAL
Washer
Packaging and quantity
Index
EAN
Catalog price for pack. net

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

ODX Self-drilling screws for timber 4.8x35 mm with washer A14 - cardboard box - 250 pcs.

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

Installation data

Technical library

(5)

Technical assessments(2)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Download

UKTA-22/6370

Download
Declarations(2)

DoP-24/0237 ODX (ETA-24/0237 - Self-drilling screws)

Download

UKTA-DoP-22/6370-ODX

Download
Certificates(1)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

Download
