  2. ONP Self-drilling screws for sandwich panels 5.5x38 mm without washer - cardboard box - 100 pcs.

ONP Self-drilling screws for sandwich panels 5.5x38 mm without washer - cardboard box - 100 pcs.

Steel

ONP-55038

5906675330426

Koelner

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

Define product parameters:

Length
Packaging and quantity

Related products

Features

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

  • Coloured polyester protective coating with a thickness of 45-50 um (RAL, NCS, RR), provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Hardened surface of the thread (flexible core). Corrosion resistant zinc coating of thickness not less than 12 um. The shape of the thread and its height is closely related to the intended use of self drilling fixing into steel construction.
  • The drill bit is designed to provide quick and trouble-free installation in the steel. Sharp point of the drill prevents movement of the surface of the fixture.

Substrates

Structural steel

Structural steel

Approved surfaces

Applications

Steel structures

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Installation guide

Installation manual

Installation step by step

1

Za pomocą nasadki magnetyucznej dokręcić wkręt z podkładką przy urzyciu wkrętarki z regulowanym momentem obrotowym.

2

Prawidłowo zamocowany wkręt.

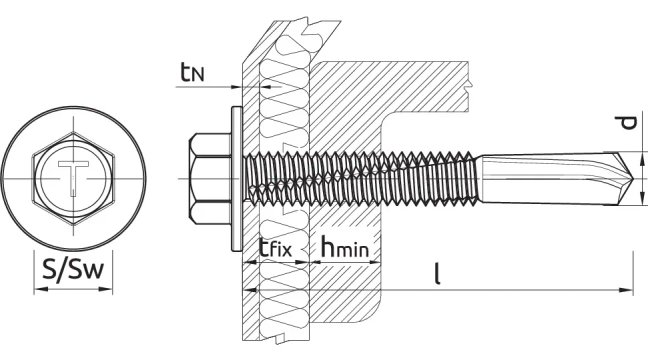

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0203

1488-CPR-0530/Z

DoP-13/0203-ONP

KOT-0159/2018

020_UWB_0850_Z

KDWU-2018/0159-2

UKTA-22/6370

UKTA-DoP-22/6370-ONP

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Catalogue
