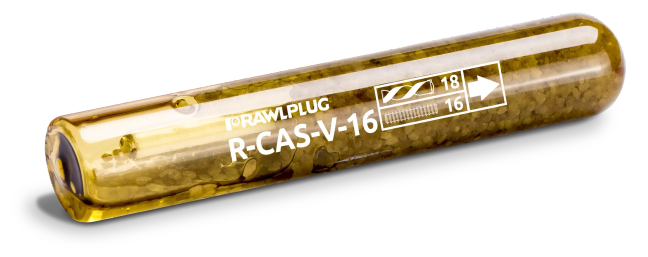

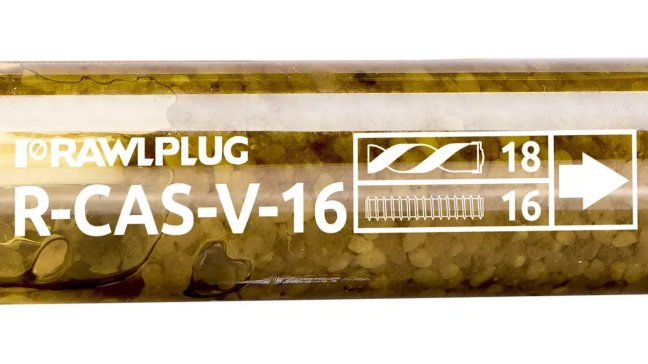

R-CAS-V-16
5906675280219
Bonded screw anchor based on vinylester resin in an ampoule for concrete
Define product parameters:
Unit pack
10.00 pcs.0.36 kg
Bulk pack
480.00 pcs.18.01 kg
Pallet
5760.00 pcs.241.14 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation

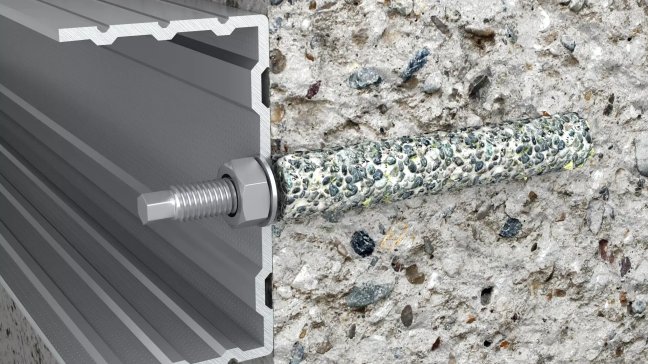

Bonded screw anchor based on vinylester resin in an ampoule for concrete
Approved surfaces
Metric diameter | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Drill a hole to the required diameter and depth for rebar size being used.
Blow out dust at least 4 times with a hand pump.
Clean drilled hole 4 times.
Remove drill cuttings from the hole using the hand pump four times. These are necessary pre-installation steps.
Insert capsule into the hole.
Positioning the stud into the drilled hole. Switch on the drilling machine (simultaneous hammering and turning) and drive the stud into the drilled hole until the embedment depth is reached. Setting control: mortar excess flows out at the top of the drilled hole.
Leave the fixing undisturbed until the cure time elapses.
Attach the fixture and tighten the nut to the required torque.

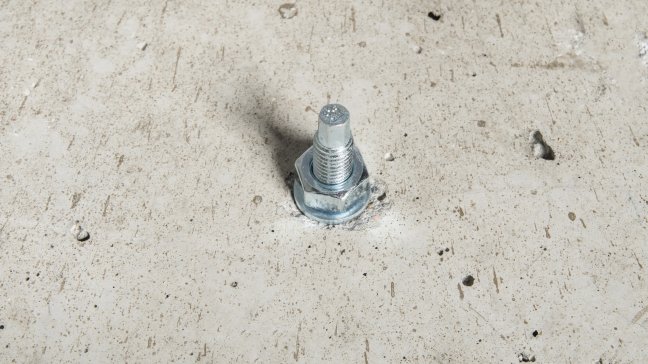

Chemical anchor properly installed.
