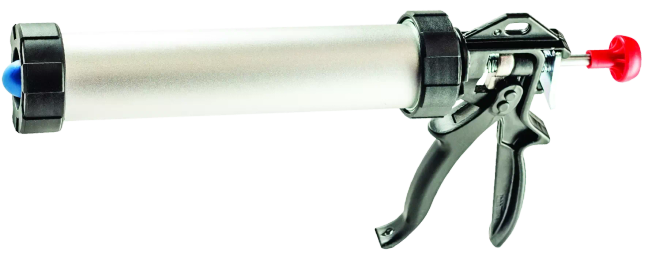

Manual foil gun 300ml from the CFS+ R-GUN 300 system - plastic bag - 1 pc.
Universal
R-CFS+-GUN
5906675239804
Define product parameters:
For capacity
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features
Professional manual gun for bonded anchors in 600ml foil loads
- Type of gun used for anchoring strictly depends on the type of cartridge
- Manual operation - no need for external power supply
- Robust design for all jobsite conditions
- Fast and effortless resin injection
- Convenient dispensing tool for a range of situations
Product video
Jak zamontować konstrukcję stalową?
Rawlplug CFS+ RV200 Styrene Free Vinylester Resin - Cartridge Free System
Substrates
Approved surfaces
Applications
Services
Design Consulting
E-learning training
Learn moreTraining at the Rawlplug Academy center
Technical Support 2
Installation guide
Installation manual
Installation step by step
1
When starting dosing from a new package, discard some of the resin until the mixture is uniform in color
2
Drill a hole to the required diameter and depth for rebar size being used.
3
Clean drilled hole 4 times.
4
Blow out the dust at least 4 times with the hand pump.
5
Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.
6
Place the foil pack in the squeezer.
7
Insert the mixing nozzle to the far end of the hole and inject resin, slowly withdrawing the nozzle as the hole is filled to 70% of its depth.
8
zdj2_1
9
zdj1
10
zdj1_1
