R-CFS+RM50-600-8
5906675078823

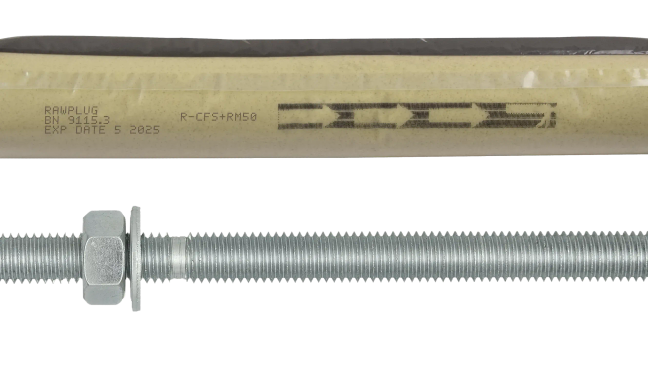

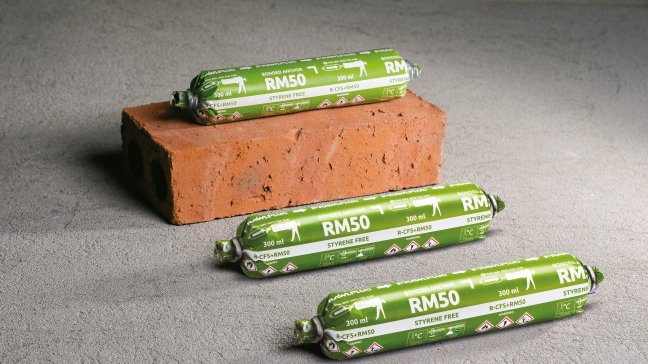

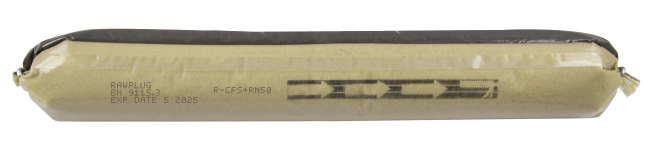

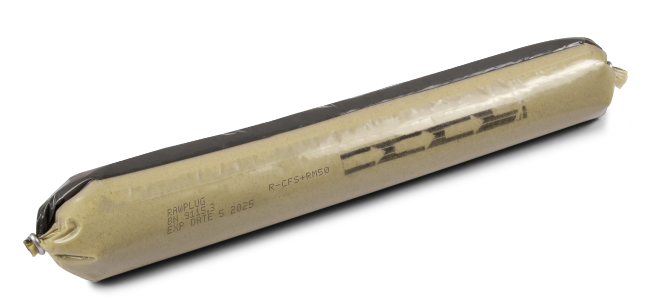

Bonded anchor based on polyester resin in 600ml foil loads
Define product parameters:
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Bonded anchor based on polyester resin in 600ml foil loads
Approved surfaces
Resin calculator
EasyFix
Rawlplug Academy
Technical Support 2
Drill a hole to the required diameter and depth for rebar size being used.
Blow out the dust at least 4 times with the hand pump.
Clean drilled hole 4 times.
Place the foil pack in the squeezer.
Apply the adapter to the CFS and screw on the appropriate mixer.
When starting dosing from a new package, discard some of the resin until the mixture is uniform in color
Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.
Immediately insert the rebar, slowly and with slight twisting motion. Remove any excess resin around the hole before it sets and leave it undisturbed until the curing time elapses.
Leave the anchor undisturbed unitl the curing time elapses.
The anchor is correctly fixed.
Drill a hole to the required diameter and depth for rebar size being used.

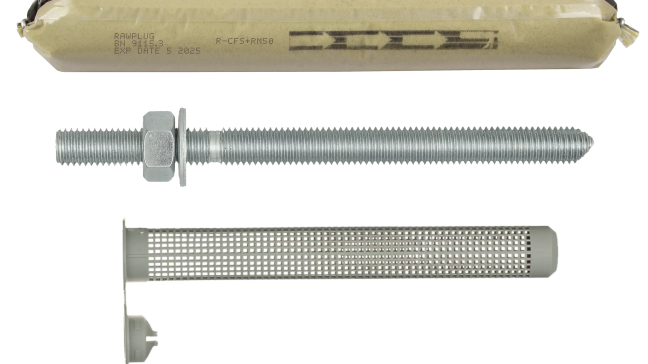

Hollow substrates: insert mesh sleeve into the hole.
Solid substrates: Insert the mixer nozzle to the bottom of the drill hole and inject resin, slowly withdrawing the nozzle as the hole is filled to 70% of its depth.
Immediately after dispensing the resin, insert the rod into the hole with a twisting motion.
Remove excess resin that has flowed out of the hole and allow the resin to set properly.
Attach fixture and tighten the nut to the required torque.
Bonded anchor with the threaded rod is properly installed.
